Запчасти Case 521F (41.101.AB[02]) - CAB STEERING COLUMN (41) - STEERING

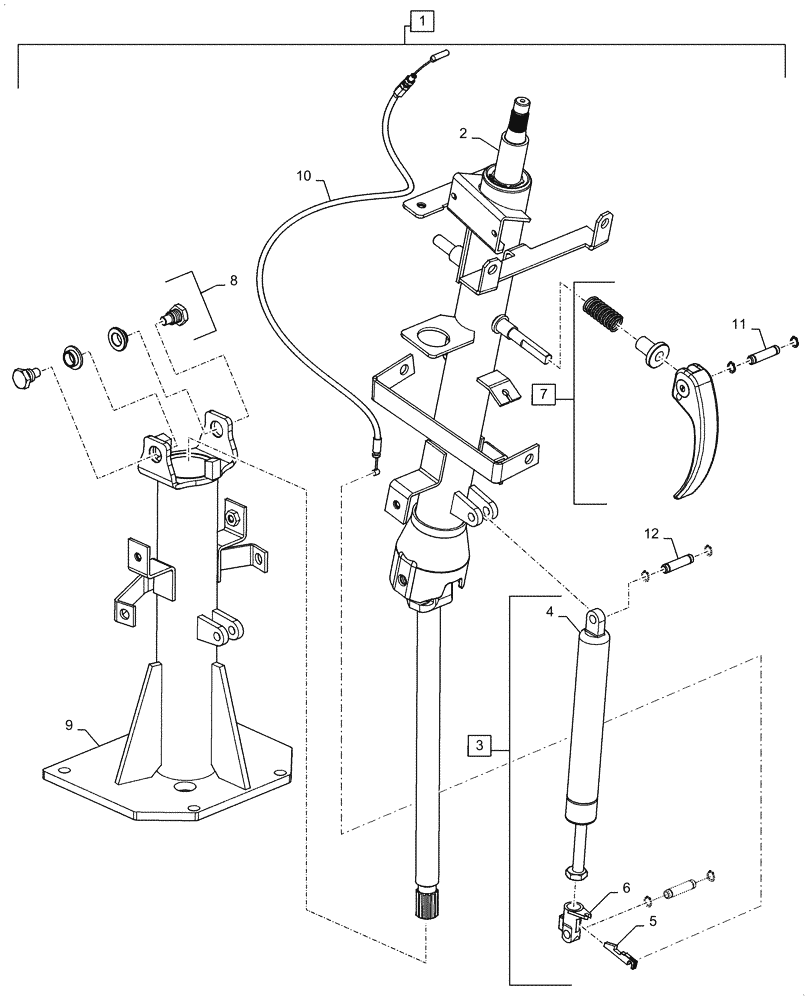

Схема запчастей Case 521F - (41.101.AB[02]) - CAB STEERING COLUMN (41) - STEERING
11
2
12
1
7
3
10
9
4
5
6
8

Артикул

Название

Примечание

Количество

1

84483956

STEERING COLUMN

Assembly, Incl 2 - 12

1шт.

2

84486894

STEERING SHAFT

KIT, Upper Column and Shaft Assy.

1шт.

3

84177065

REPAIR KIT

Kit, Gas Spring, Incl 4- 6, 12

1шт.

4

84470323

GAS STRUT

Steering cylinder

1шт.

5

84243534

LEVER

Position Lock

1шт.

6

84243594

HEAD

Rod Eye

1шт.

7

84486895

STEERING SHAFT

KIT, Lever Incl 11

1шт.

8

84155697

REPAIR KIT

KIT, Pivot

1шт.

9

84155699

HOLDER

KIT, Lower Column, Support Assy.

1шт.

10

84155700

CABLE

KIT, Cable, Gas Strut Activator

1шт.

11

NSS

NOT SOLD SEPARAT

Pin, Lever, Incl in 7

1шт.

12

NSS

NOT SOLD SEPARAT

Pin, Gas Strut Mounting, Incl in 3

2шт.

Выбрано товаров: 12
