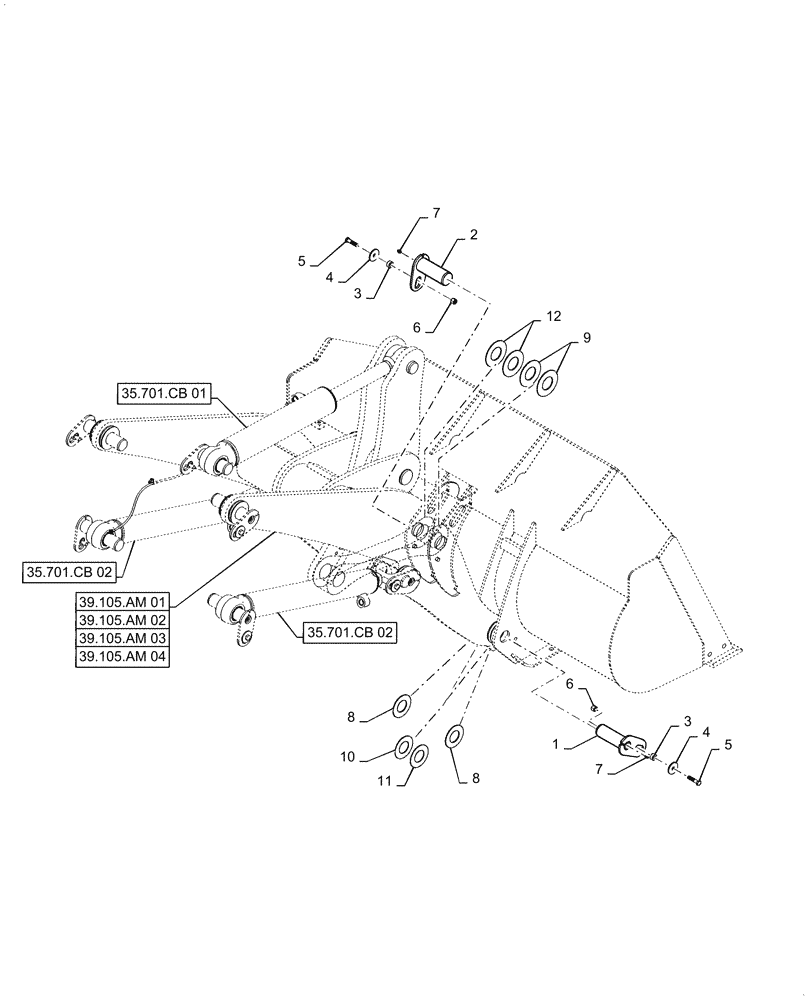

Запчасти Case 521F (39.105.AM[08]) - VAR - 782537, 424920, 482047, 424988, 424250, 734007, 424249, 424914, 424986 - LIFT ARM, PIN, SET (39) - FRAMES AND BALLASTING

1

87397324

PIN ASSY.

Lift Arm Pivot, CE Gray

2шт.

2

87397326

PIN

Dump Link Pivot, CE Gray

1шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

1шт.

9

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

1шт.

10

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

1шт.

11

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

1шт.

12

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

2шт.
