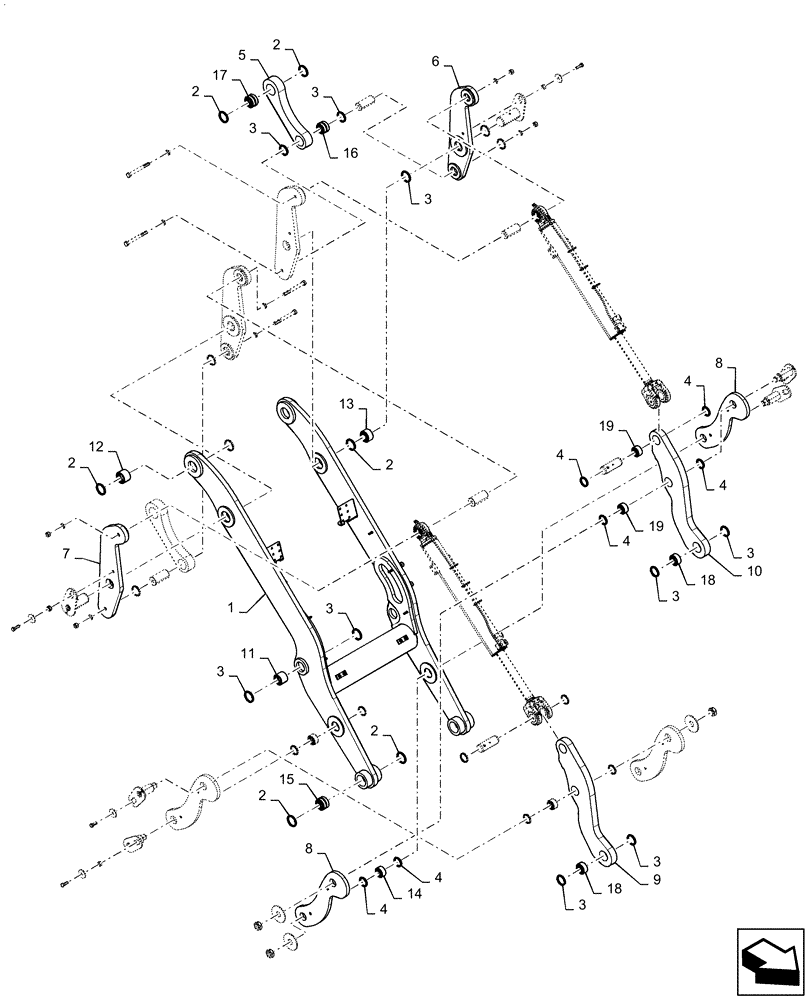

Запчасти Case 521F (39.105.AM[06]) - LIFT ARMS AND COMPONENTS, XT (39) - FRAMES AND BALLASTING

1

87343694

LIFT ARM

Assembly, Main, XT

1шт.

2

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

Bucket Pivot

16шт.

3

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

Dump Link, Bucket End

12шт.

4

D95145

WIPER SEAL,54.79mm ID x 70.09mm OD x 7.91mm W

57.125mm, Dump Link and Main Lift Arm Pivot

12шт.

5

87447627

LINKAGE

Anchor Link, Bellcrank to Frame

2шт.

6

87343715

BELLCRANK

Tilt Cylinder Mount, LH

2шт.

7

87343720

BELLCRANK

Tilt Cylinder Mount, RH

2шт.

8

87447635

LINKAGE

Dump Link Guide

4шт.

9

87452240

LINKAGE

Dump, RH

1шт.

10

87310634

LINKAGE

Dump, LH

1шт.

11

87613439

BUSHING,63.8mm ID x 76.31mm OD x 58mm L

Lift Cylinder Pivot

2шт.

12

87613440

BUSHING,70.16mm ID x 82.66mm OD x 57mm L

Lift Arm Chassis Pivot

2шт.

13

87613441

BUSHING

Bellcrank Pivot, 70.16mm ID x 82.66mm OD x 43mm L

2шт.

14

87613427

BUSHING,57.46mm ID x 69.96mm OD x 34mm L

Dump Link Guide Pivot

2шт.

15

87613435

BUSHING,70.16mm ID x 82.66mm OD x 48mm L

Lift Arm Bucket End

4шт.

16

369433A2

BUSHING

Anchor, Lift Arm End, 63.8mm ID x 76.3mm OD x 48mm L

4шт.

17

8500303

BUSHING

Anchor, Frame End, 70.19mm ID x 82.6mm OD x 48mm L

4шт.

18

379191A2

BUSHING

Dump Link Bucket Pivot, 63.8mm ID x 76.3 OD x 34mm L

2шт.

19

369432A2

BUSHING

Tilt Cylinder and Dump Link Pivot, 57.4mm ID x 69.9mm OD x 34mm L

4шт.
