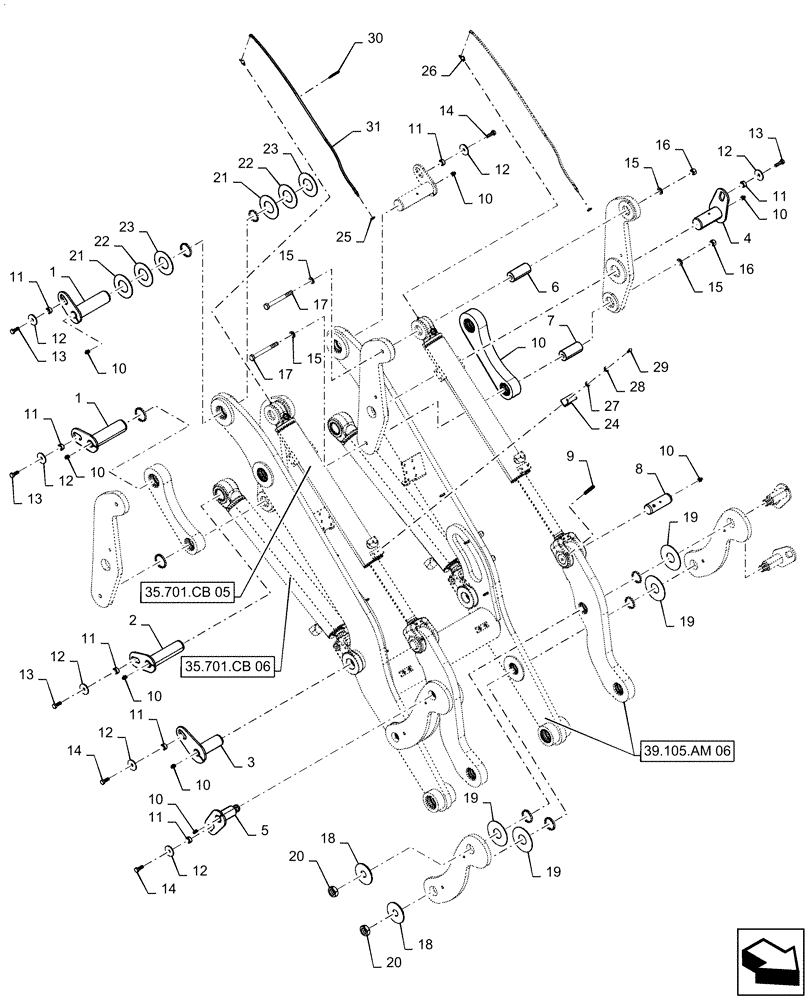

Запчасти Case 521F (39.105.AM[05]) - LIFT ARM INSTALLATION, XT (39) - FRAMES AND BALLASTING

1

87446997

HEADED PIN

Lift Arm and Anchor, 69.85mm OD x 244mm L

4шт.

2

84315936

PIN

Lift Cylinder Pivot, Base End 63.5 OD x 24mm L

2шт.

3

87397333

PIN,63.5mm OD x 177.5mm L

Lift Cylinder, Rod End

2шт.

4

368744A2

PIN ASSY.

Bellcrank Pivot, 69.8mm OD x 161mm L

2шт.

5

369238A2

PIN ASSY.

Dump Link Center Pivot, 57.1mm OD x 144mm L

4шт.

6

368775A1

PIN

Bellcrank Upper, 57.1mm OD 130.6mm L

2шт.

7

368776A1

PIN,63.5mm OD x 130.65mm L

Bellcrank Lower

2шт.

8

368836A2

PIN,57.15mm OD x 165mm L

Dump Link to Tilt Cylinder Pivot

2шт.

9

38-33264

PIN,12.7mm OD x 101.6mm L, Coiled

Roll Pin

2шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

18шт.

11

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Pivot Pin Mounting

14шт.

12

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

14шт.

13

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

8шт.

14

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

6шт.

15

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

8шт.

16

829-1420

NUT,M20, Cl 10

4шт.

17

827-20190

BOLT,Hex, M20 x 2.5 x 190mm, Cl 10.9

4шт.

18

117025A1

WASHER,40mm ID x 127mm OD x 6.35mm Thk

4шт.

19

369712A1

WASHER

Hardened, 58.6mm ID, 3.5mm Thk

8шт.

20

131-53

NUT,1 1/2"-12

4шт.

21

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

Lift Arm Mounting Shim

1шт.

22

375516A1

WASHER,71.3mm ID x 142mm OD x 1.6mm Thk

Lift Arm Mounting Shim

1шт.

23

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

Lift Arm Mounting Shim

1шт.

24

87448980

BRACKET

Tilt Cylinder Grease Line

1шт.

25

F53473

LOCK NUT,1/8-27 NPSM

2шт.

26

328082A1

ELBOW

90 Deg, 1/8 - 27 NPT

2шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

28

892-11010

LOCK WASHER,M10

2шт.

29

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

2шт.

30

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

31

87444057

FLEXIBLE HOSE

Tilt Cylinder Mounted Grease hose

2шт.
