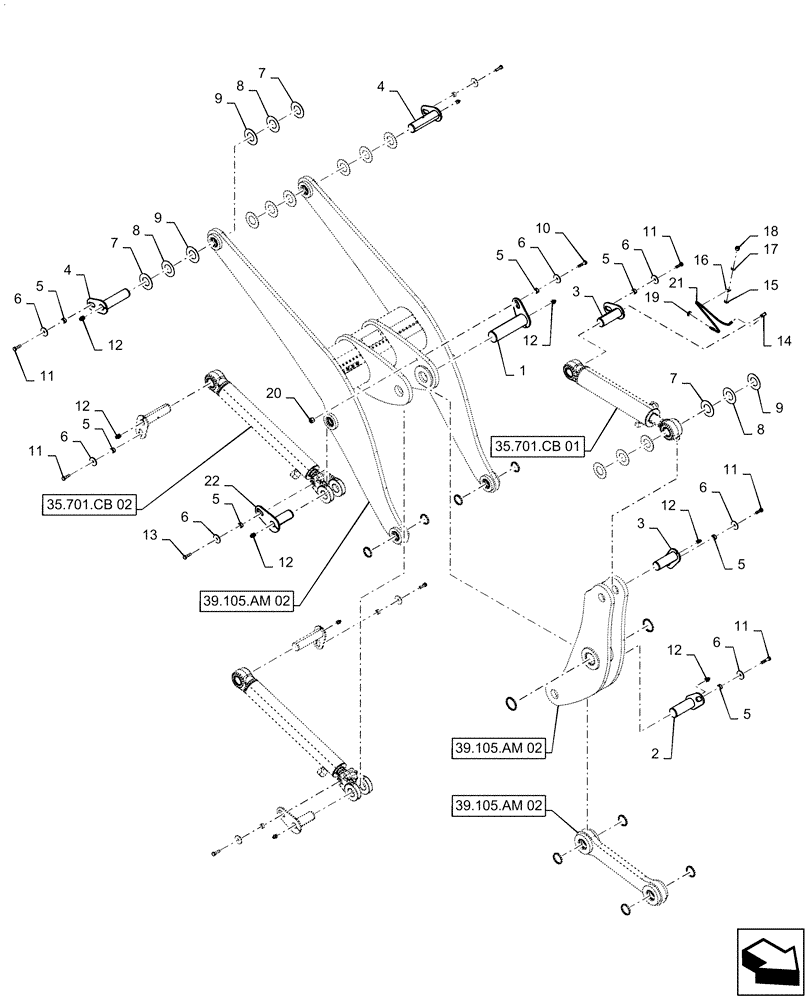

Запчасти Case 521F (39.105.AM[01]) - LIFT ARM INSTALLATION Z-BAR (39) - FRAMES AND BALLASTING

1

87397320

PIN,82.55mm OD x 316.5mm L

Bellcrank Pivot

1шт.

2

87397326

PIN

Dump Link Pivot, 69.8mm OD x 182mm L

1шт.

3

87397324

PIN ASSY.

Tilt Cylinder Pivot, 63.5mm OD x 182mm L

2шт.

4

84315936

PIN

Lift Arm Pivot, Head, 63.5mm OD x 244mm L

4шт.

5

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Pin mounting

10шт.

6

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

10шт.

7

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

Hardened Washer

1шт.

8

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

Hardened Washer

1шт.

9

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

Hardened Washer

1шт.

10

827-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 10.9

1шт.

11

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

7шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

9шт.

13

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

14

328082A1

ELBOW

90 Deg, Street, 1/8 - 27 NPT

1шт.

15

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

16

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

19

F53473

LOCK NUT,1/8-27 NPSM

1шт.

20

832-10416

NUT,M16 x 2, Cl 8

1шт.

21

L54694

HOSE,4.8mm ID x 1041mm L

Grease Line

1шт.

22

87397333

PIN,63.5mm OD x 177.5mm L

Lift Arm Cylinder, Rod End

2шт.
