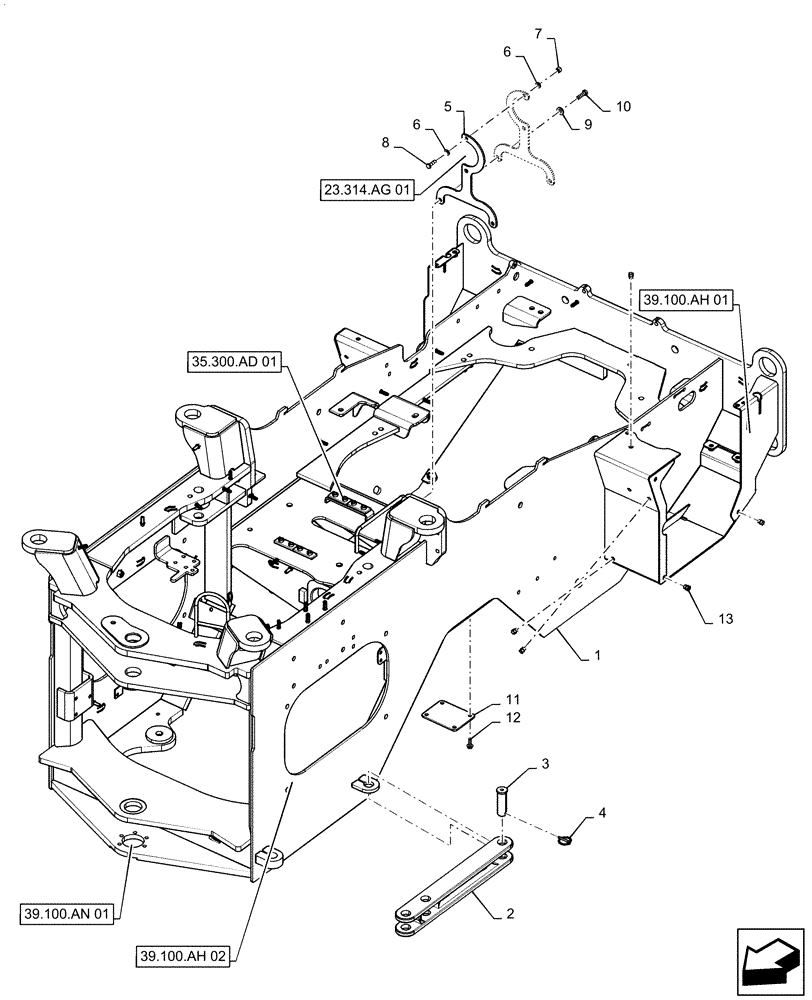

Запчасти Case 521F (39.100.AS[01]) - REAR FRAME AND COMPONENTS (39) - FRAMES AND BALLASTING

1

47692009

FRAME

Assembly, Rear

1шт.

2

412067A1

LOCKING BAR

Articulation Lock

1шт.

3

126268A1

PIN,31.8mm OD x 108mm L

Locking Bar

2шт.

4

A30338

PIN

Klik - Pin

2шт.

5

84359820

GUARD

Rear Drive Shaft

2шт.

6

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

9

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

10

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

2шт.

11

47397618

PLATE

Tank Drain

1шт.

12

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

4шт.

13

390618A1

INSERT,Knurled Open, M10 x 13.46mm OD

9шт.
