(39.100.AH[01]) - DEF TANK AND BATTERY COVERS

Запчасти Case 521F (39.100.AH[01]) - DEF TANK AND BATTERY COVERS (39) - FRAMES AND BALLASTING

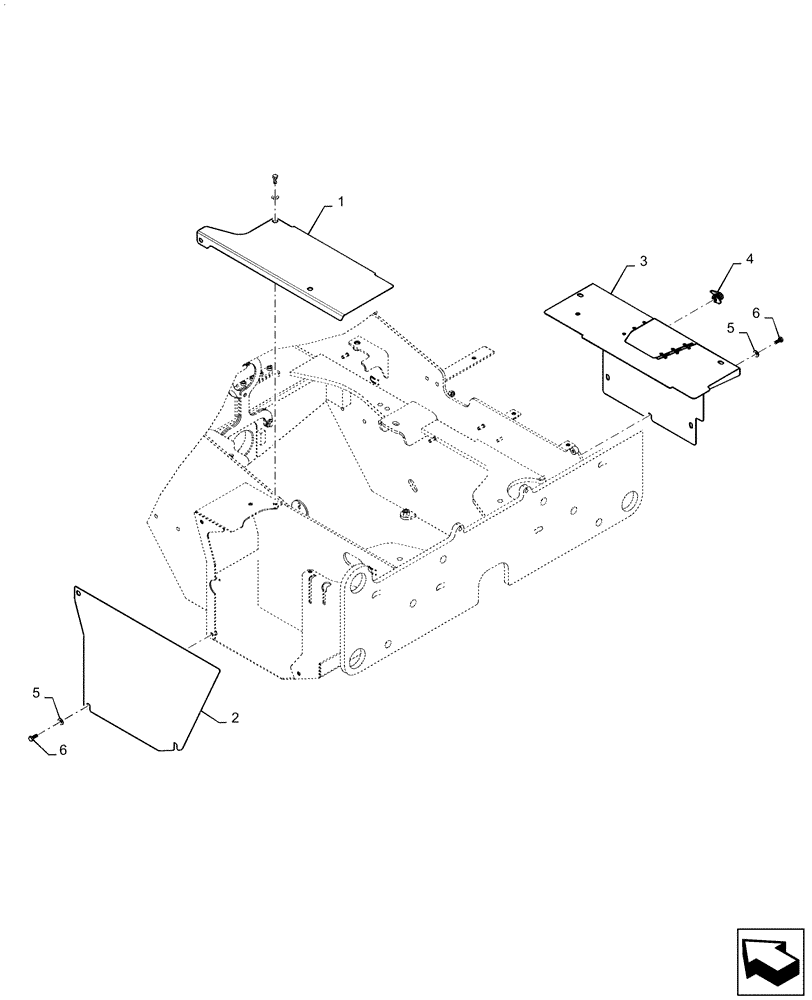

Схема запчастей Case 521F - (39.100.AH[01]) - DEF TANK AND BATTERY COVERS (39) - FRAMES AND BALLASTING
5
1
6
6
4
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47506071

COVER

Battery, Top

1шт.

2

47506074

COVER

Battery, Side

1шт.

3

47432019

COVER ASSY

DEF Tank

1шт.

4

8602791

LOCK

Access Cover

1шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

11шт.

6

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

11шт.
