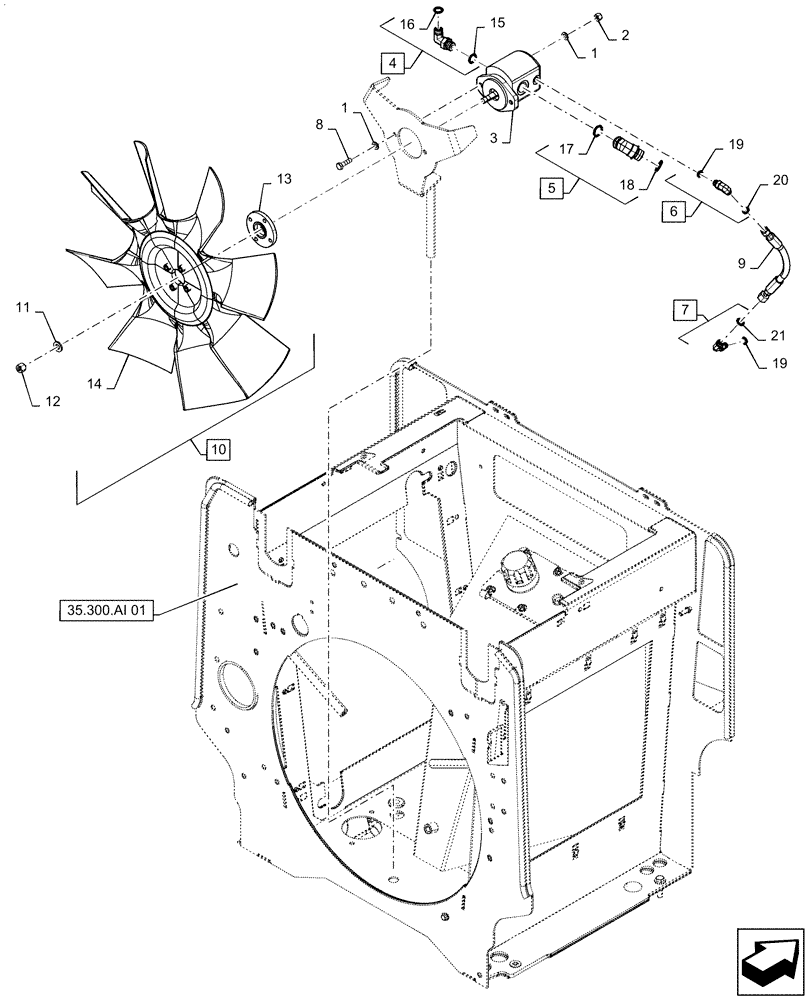

Запчасти Case 521F (35.752.AC[01]) - HYDRAULIC COOLING FAN MOTOR INSTALLATION (35) - HYDRAULIC SYSTEMS

1

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

3

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Fan Drive

1шт.

4

86579692

90 ELBOW,90 Degree, 13/16"-18 ORFS x M22 x 1.5 ORB

Incl 15, 16

1шт.

5

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Incl 17, 18

1шт.

6

84432241

90 ELBOW,90 Degree, 9/16"-18 ORFS x M14 x 1.5 ORB

Incl 19, 20

1шт.

7

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 19, 21

1шт.

8

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

9

87427292

HOSE ASSY.,6.35mm ID x 260mm L, SAE 100R17

Motor Drain, to Hydraulic Tank

1шт.

10

87700024

FAN,8 Blades, 711.2mm OD

Assembly, Incl 13, 14

1шт.

11

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

12

232-2448

NUT,1/2"-20, GC

1шт.

13

87700023

HUB

Fan Hub

1шт.

14

8604699

FAN

8 Blades, 711.2mm OD

1шт.

15

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

16

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

17

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

2шт.

18

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

19

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

20

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

21

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.
