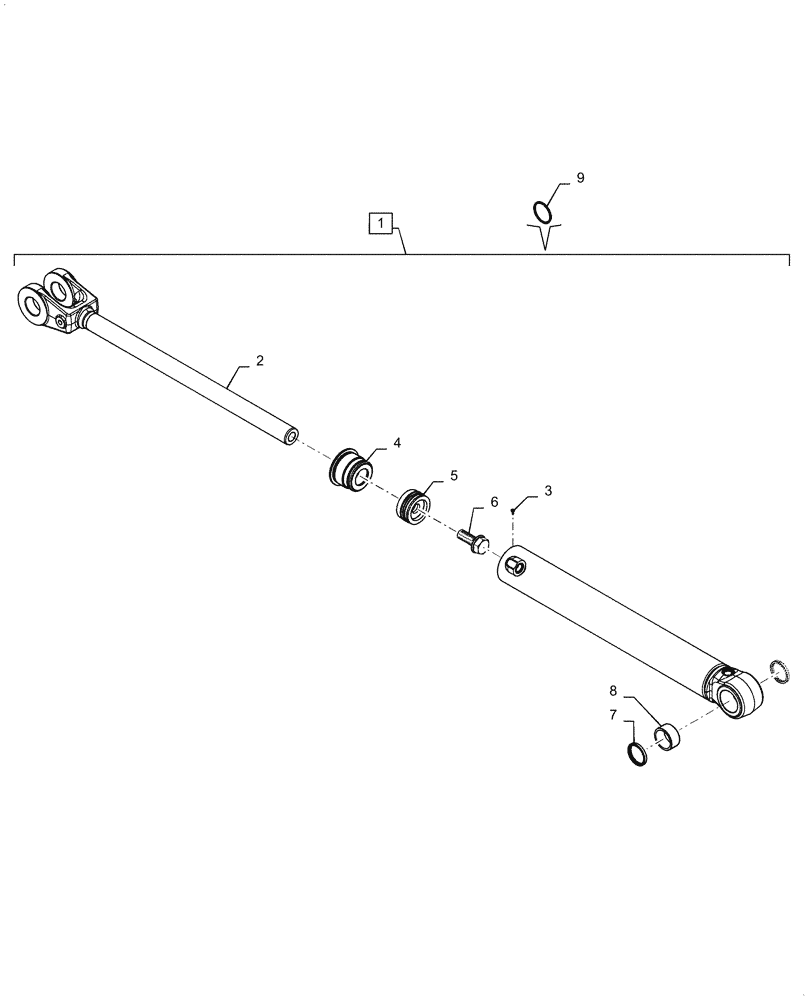

Запчасти Case 521F (35.701.CB[06]) - LIFT CYLINDER, XT (35) - HYDRAULIC SYSTEMS

1

87366685

CYLINDER ASSY.,Double Acting, 57.2mm Rod, 783mm Stroke

Lift, Incl 2 - 8

1шт.

2

87317752

PISTON ROD

1шт.

3

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

4

337557A1

GLAND

1шт.

5

337551A1

PISTON

1шт.

6

86982442

SPECIAL BOLT,Hex, 12, 1 1/4 x 3.25"

W/ Washer, Piston to Rod Mounting

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2шт.

8

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

2шт.

9

87434292

SEAL KIT

Incl 4, 5

1шт.
