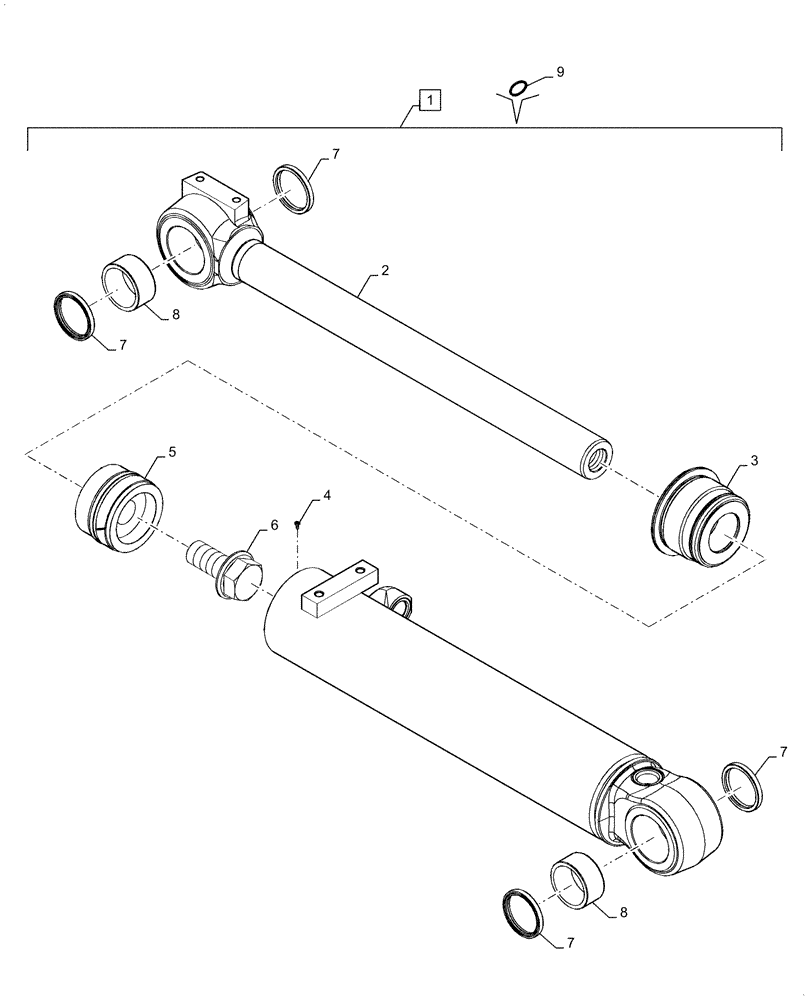

Запчасти Case 521F (35.701.CB[03]) - TILT CYLINDER, XR (35) - HYDRAULIC SYSTEMS

1

87695546

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 529.2mm Stroke

Tilt, Incl 2 - 8

1шт.

2

398355A1

ROD

63.5mm Dia., 1131.5mm L

1шт.

3

336378A1

GLAND

1шт.

4

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

1шт.

5

336376A1

PISTON

1шт.

6

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

W/ Washer, Piston to Rod Mounting

1шт.

7

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

4шт.

8

87625615

BUSHING,63.84mm ID x 76.32mm OD x 36mm L

4шт.

9

87434291

SEAL KIT

Incl in 3, 5

1шт.
