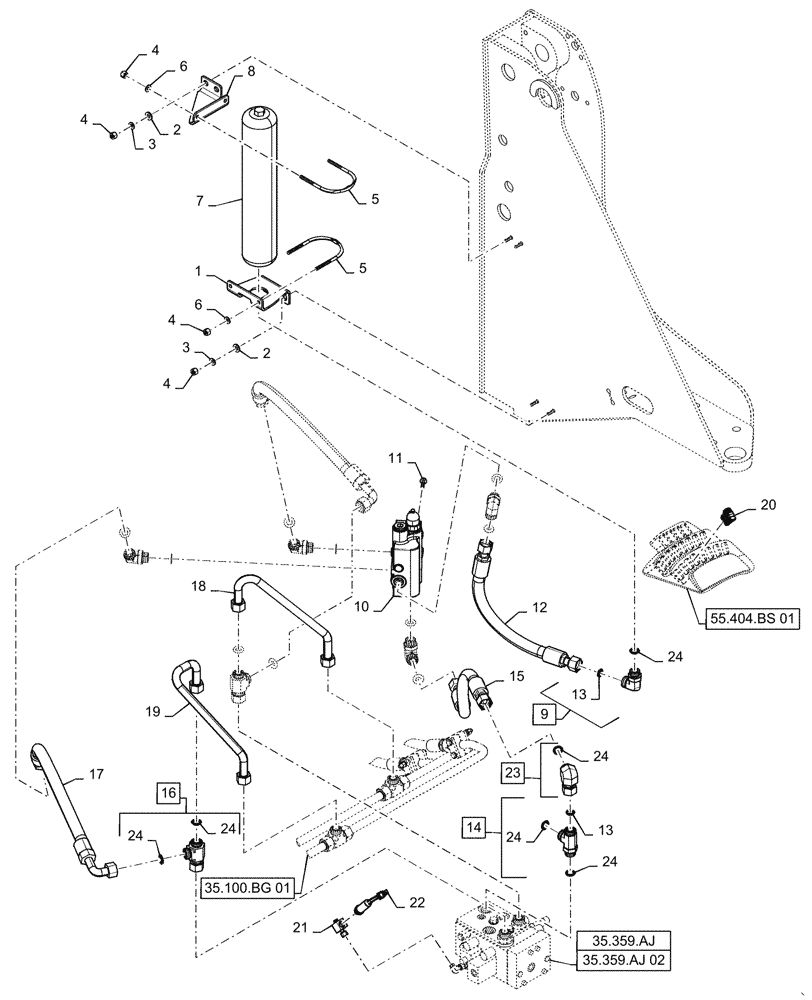

Запчасти Case 521F (35.701.AA[01]) - VAR - 782503 - RIDE CONTROL , COMPONENTS (35) - HYDRAULIC SYSTEMS

1

87393646

BRACKET

Ride Control Accumulator

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

8шт.

5

87492028

U-BOLT

Coined

2шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

7

87393434

ACCUMULATOR,3.8L

Ride Control

1шт.

8

87403347

BRACKET

Ride Control Accumulator, Top

1шт.

9

700-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 13, 24

5шт.

10

84494281

HYDRAULIC VALVE

Ride Control

1шт.

11

844-10035

BOLT,Hex, M10 x 35mm, Cl 8.8

2шт.

12

87452278

HOSE ASSY.

Ride Control Accumulator, 588mm Lg

1шт.

13

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

Boss Seal

6шт.

14

700-407

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x M33 x 2 Male ORB

Incl 13, 24

1шт.

15

47579344

HOSE

Ride Control Tank, 680mm Lg

1шт.

16

701-418

TEE,1-7/16" - 12 Male ORFS x 1-7/16" - 12 Male ORFS x 1-7/16" - 12 Female ORFS

Incl 24

2шт.

17

87452280

HOSE ASSY.

Ride Control Head or Rod, 873mm Lg

2шт.

18

87452287

TUBE,25.4 mm OD x 298.1, 243.8 mm L

Ride Control, Rod

1шт.

19

87389423

HYD TUBE,19.4 mm ID x 25.40 mm OD x 253, 105 mm L

Ride Control, Head

1шт.

20

87350055

SWITCH

Ride Control, Cab Dash

1шт.

21

397547A1

FITTING

Pressure Switch

1шт.

22

446183A1

PRESSURE SWITCH

Switch Rollback

1шт.

23

701-339

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-7/16" - 16 Female ORFS

Incl 24

1шт.

24

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

12шт.
