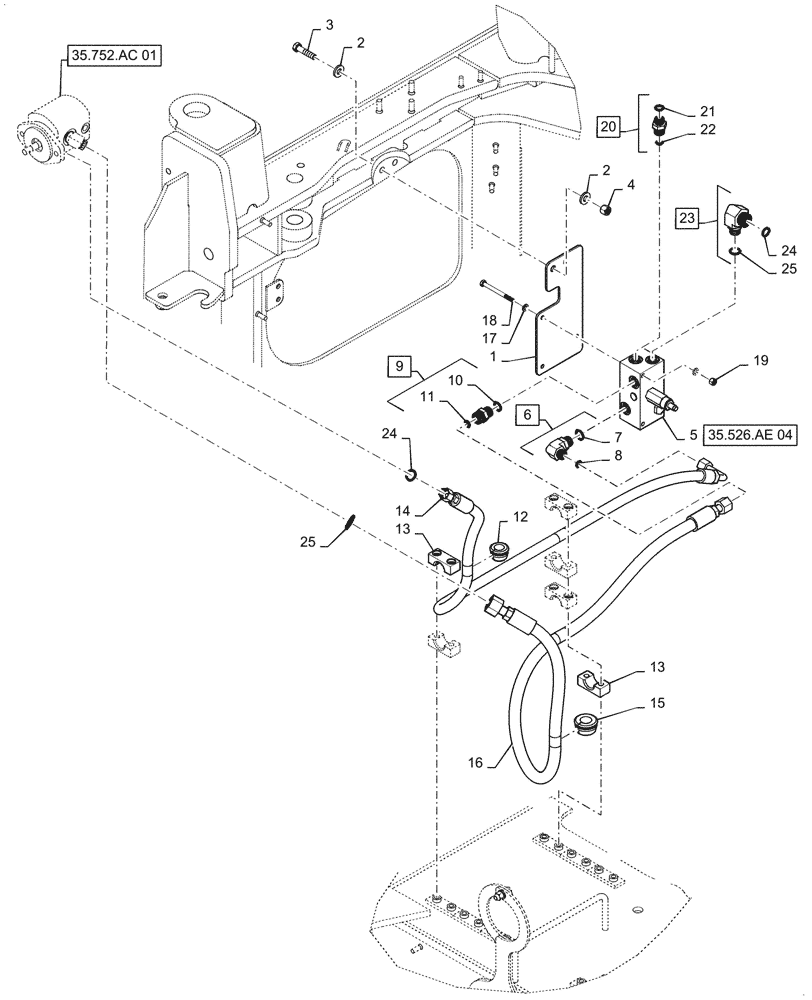

Запчасти Case 521F (35.526.AE[01]) - VAR - 782454 - FAN, RELIEF VALVE, HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

87724971

BRACKET

Valve Mounting

1шт.

2

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

3

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

4

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

5

429361A2

VALVE, PRESSURE RELI

Assembly

1шт.

6

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 7, 8

1шт.

7

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

8

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

9

700-103

HYD CONNECTOR,1" - 14 Male ORFS x M22 x 1.5 Male ORB

Incl 10, 11

1шт.

10

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

12

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

1шт.

13

372453A1

BLOCK

Tube Mounting

3шт.

14

87704887

HOSE ASSY.

Fan Forward, 1689.5mm L

1шт.

15

435214A1

GROMMET

Hydraulic, Hose

1шт.

16

376179A2

HOSE ASSY.

Fan Forward, 1935mm L

1шт.

17

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

18

827-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 10.9

2шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

20

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 21, 22

1шт.

21

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

23

700-350

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M22 x 1.5 Male ORB

Incl 24, 25

1шт.

24

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

25

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.
