Запчасти Case 521F (35.359.AJ[01]) - VAR - 782486, 782489 - VALVE ASSEMBLY, PISTON AXIS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

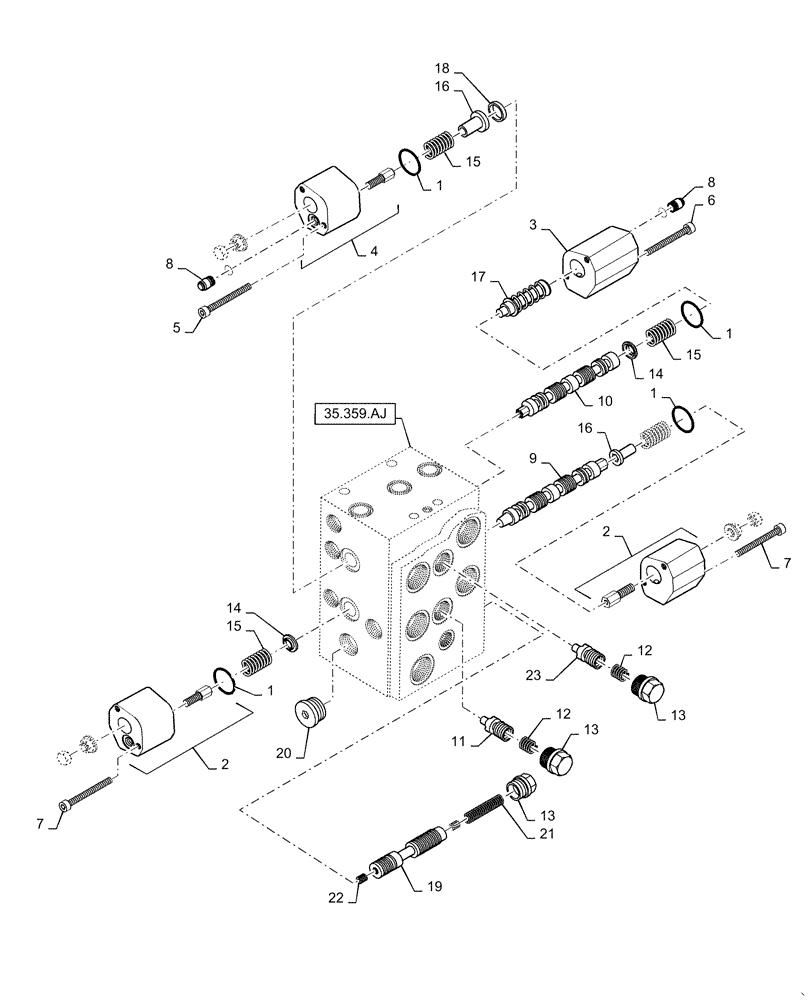

Схема запчастей Case 521F - (35.359.AJ[01]) - VAR - 782486, 782489 - VALVE ASSEMBLY, PISTON AXIS, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS
35.359.aj
14
7
17
8
12
6
1
13
21
16
14
16
12
15
23
10
19
11
1
15
5
4
3
8
15
13
22
20
2
2
7
18
1
13
9
1

Артикул

Название

Примечание

Количество

1

8604575

SEAL KIT

For Main Housing

1шт.

2

8604576

COVER

M6 Valve

2шт.

3

87311972

COVER

M6 Valve

1шт.

4

8605577

COVER

M6 Valve

1шт.

5

864-5060

HEX SOC SCREW,M5 x 60mm, Cl 8.8

2шт.

6

87311974

HEX SOC SCREW,M5 x 85mm, Cl 10.9

2шт.

7

87657975

HEX SOC SCREW,M5 x 55mm, Cl 8.8

4шт.

8

8604578

CHECK VALVE

Throttle

2шт.

9

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ Ref 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ Ref 1

1шт.

11

NSS

NOT SOLD SEPARAT

Piston, Incl in Fig. 35.359.AJ Ref 1

1шт.

12

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ Ref 1

2шт.

13

8604581

SCREW,Lock, M6

3шт.

14

NSS

NOT SOLD SEPARAT

Spring Retainer, Incl in Fig. 35.359.AJ Ref 1

2шт.

15

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ Ref 1

4шт.

16

NSS

NOT SOLD SEPARAT

Retanier, Incl in Fig. 35.359.AJ Ref 1

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Incl in Fig. 35.359.AJ Ref 1

1шт.

18

NSS

NOT SOLD SEPARAT

Ring, Incl in Fig. 35.359.AJ Ref 1

1шт.

19

NSS

NOT SOLD SEPARAT

Piston, Incl in Fig. 35.359.AJ Ref 1

1шт.

20

87311988

PLUG

M22 x 1.5

1шт.

21

NSS

NOT SOLD SEPARAT

Compression Spring, Incl in Fig. 35.359.AJ Ref 1

1шт.

22

NSS

NOT SOLD SEPARAT

Jet, Incl in Fig. 35.359.AJ Ref 1

2шт.

23

NSS

NOT SOLD SEPARAT

Spool, Incl in Fig. 35.359.AJ Ref 1

1шт.

Выбрано товаров: 23
