Запчасти Case 521F (35.357.AL[02]) - VAR - 782492, 782495 - PILOT VALVE INSTALLATION, 3 LEVER, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS

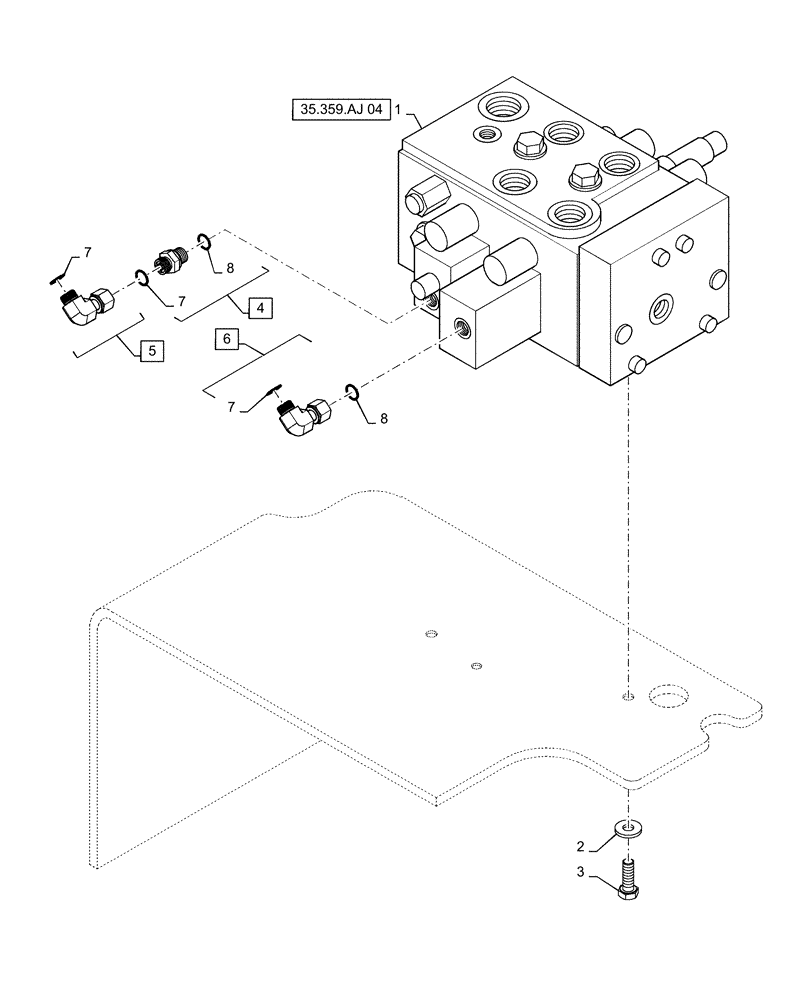

Схема запчастей Case 521F - (35.357.AL[02]) - VAR - 782492, 782495 - PILOT VALVE INSTALLATION, 3 LEVER, Z-BAR AND XR/LR (35) - HYDRAULIC SYSTEMS
35.359.aj 04
7
7
3
2
4
6
7
5
1
8
8

Артикул

Название

Примечание

Количество

1

87307983

HYDRAULIC VALVE

3 Spool

1шт.

1

87307983R

REMAN-HYD VALVE

Reman Valve - 3 Spool

1шт.

1

87307983C

CORE-VALVE HYD

Return Number

1шт.

2

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

3шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

4

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 7, 8

1шт.

5

701-329

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 9/16" - 18 Female ORFS

Incl 7

1шт.

6

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 7, 8

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

3шт.

8

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

Выбрано товаров: 10
