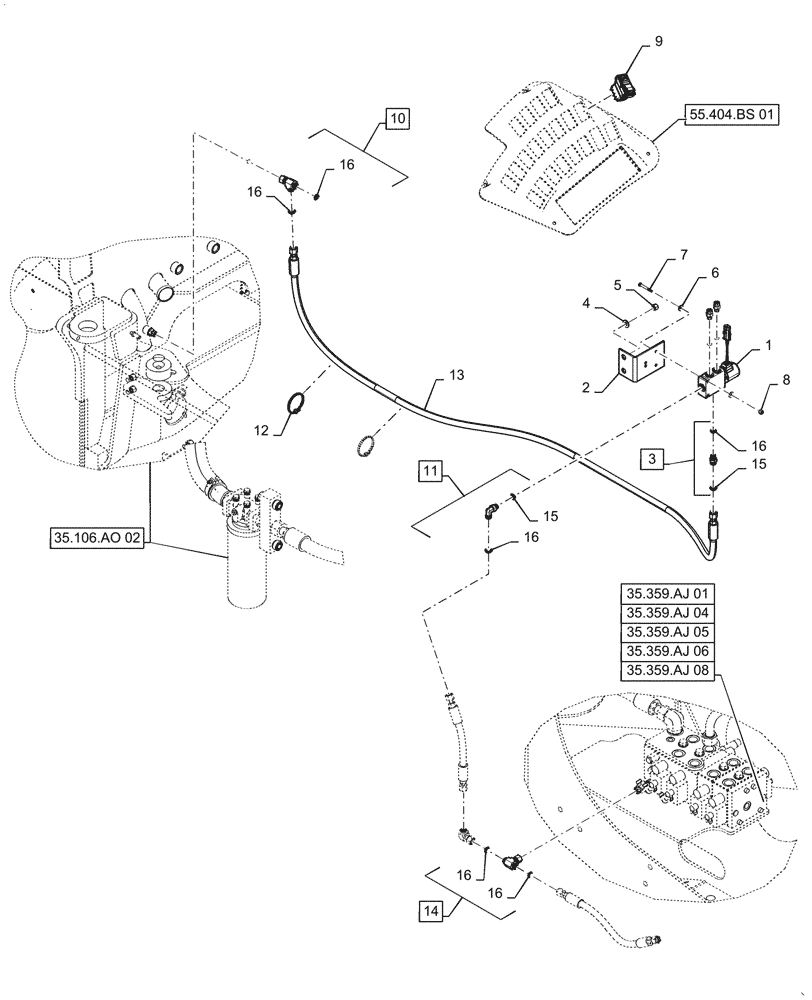

Запчасти Case 521F (35.310.AS[01]) - VAR - 424911, 482047, 424988, 424249 424250 734006, 734007 -HYD. LINE, COUPLING, SOLENOID, VALVE (35) - HYDRAULIC SYSTEMS

1

84139102

SOLENOID VALVE

Coupler, Assembly

1шт.

2

87404018

BRACKET

Solenoid Valve, CE Gray

1шт.

3

700-101

HYD CONNECTOR,11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

3шт.

4

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

5

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

6

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

7

827-6050

BOLT,Hex, M6 x 50mm, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

2шт.

9

364444A2

SWITCH

Rocker, Cab Dash Mounted

1шт.

10

701-422

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 16

1шт.

11

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 15, 16

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

13

87403984

HOSE,9.53mm ID x 2206mm L, SAE 100R1

1шт.

14

701-434

TEE,11/16" - 16 Male ORFS x 11/16" - 16 Male ORFS x 11/16" - 16 Female ORFS

Incl 16

1шт.

15

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

4шт.

16

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

9шт.
