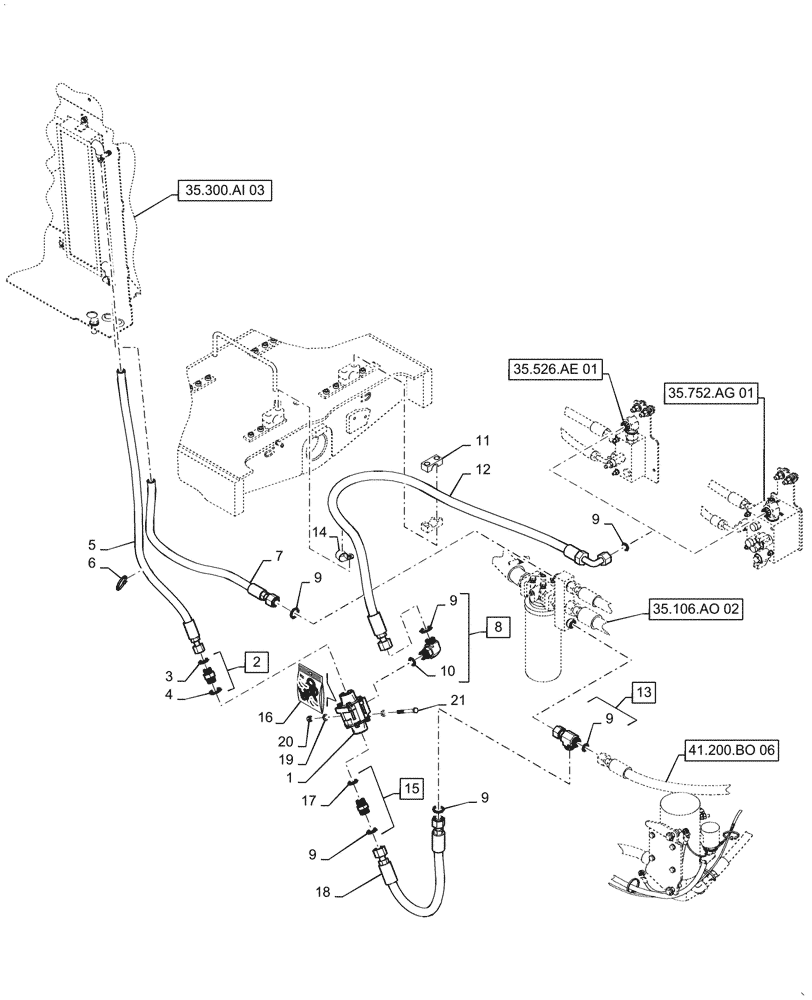

Запчасти Case 521F (35.300.BS[01]) - VAR - 782454, 482585 -THERMAL BY-PASS VALVE (35) - HYDRAULIC SYSTEMS

1

87326981

BY-PASS VALVE

Thermal, Incl 23

1шт.

2

86597760

HYD CONNECTOR,1"-14 ORFS x M2 x 2.0 ORB

Incl 3, 4

1шт.

3

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

4

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

5

87703589

HOSE ASSY.,Hyd, 5/8" ID x 1138mm L

Bypass Valve to Cooler, 1138mm

1шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

7

87476355

HOSE ASSY.,Hyd, 5/8" ID x 840mm L

Cooler Return, 941mm

1шт.

8

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 9, 10

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

10

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

11

372453A1

BLOCK

Mounting

2шт.

12

87634159

HOSE ASSY.,Hyd, 3/4" ID x 1739mm L

Fan Valve to Bypass, 1739mm

1шт.

13

701-417

TEE,1-3/16" - 12 Male ORFS x 1-3/16" - 12 Male ORFS x 1-3/16" - 12 Female ORFS

Incl 9

1шт.

14

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1шт.

15

700-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 9, 17

1шт.

16

87328377

REPAIR KIT

Thermal Element Assembly Seals

1шт.

17

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

18

87453664

HOSE ASSY.,Hyd, 3/4" ID x 712mm L

Bypass to Cooler, 712mm

1шт.

19

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

20

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

21

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.
