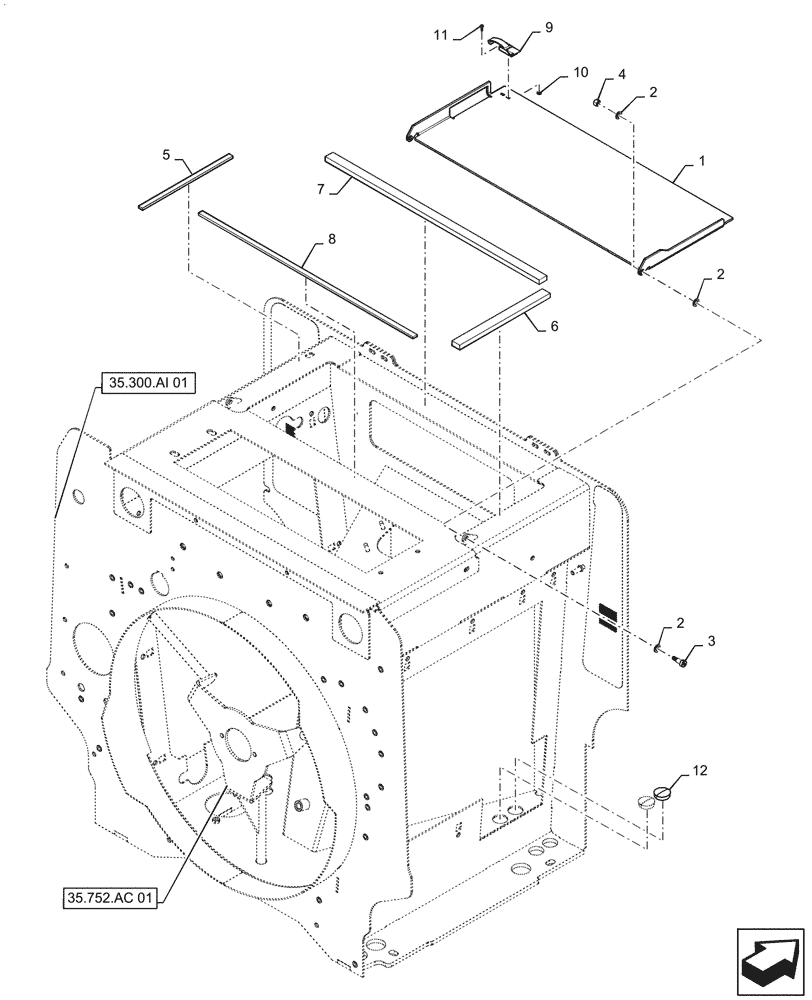

Запчасти Case 521F (35.300.AI[04]) - VAR - 782439 - AIR CONDITIONER CONDENSER DELETE COVER (35) - HYDRAULIC SYSTEMS

1

84180094

PLATE

Condenser Cover, No A/C Option

1шт.

2

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

6шт.

3

84591180

HEX SOC SCREW,M8 x 16mm, Cl 12.9

2шт.

4

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

5

87432328

SEAL

Condenser Cover, LH, Foam, 294mm L

1шт.

6

8602498

SEALING STRIP,25mm W x 294mm L x 13mm Thk

Condenser Cover, RH

1шт.

7

47688490

FOAM

Seal, Condenser Cover, Front, 695mm L

1шт.

8

8500133

OIL SEAL

Condenser Cover, Rear, Foam, 698mm L

1шт.

9

60-4640T1

LATCH

Cover Securing

1шт.

10

225-14108

NUT,#8-32

2шт.

11

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

12

353-414

PLUG,Dome, 1.375" Hole, Nylon

A/C Hose Delete

2шт.
