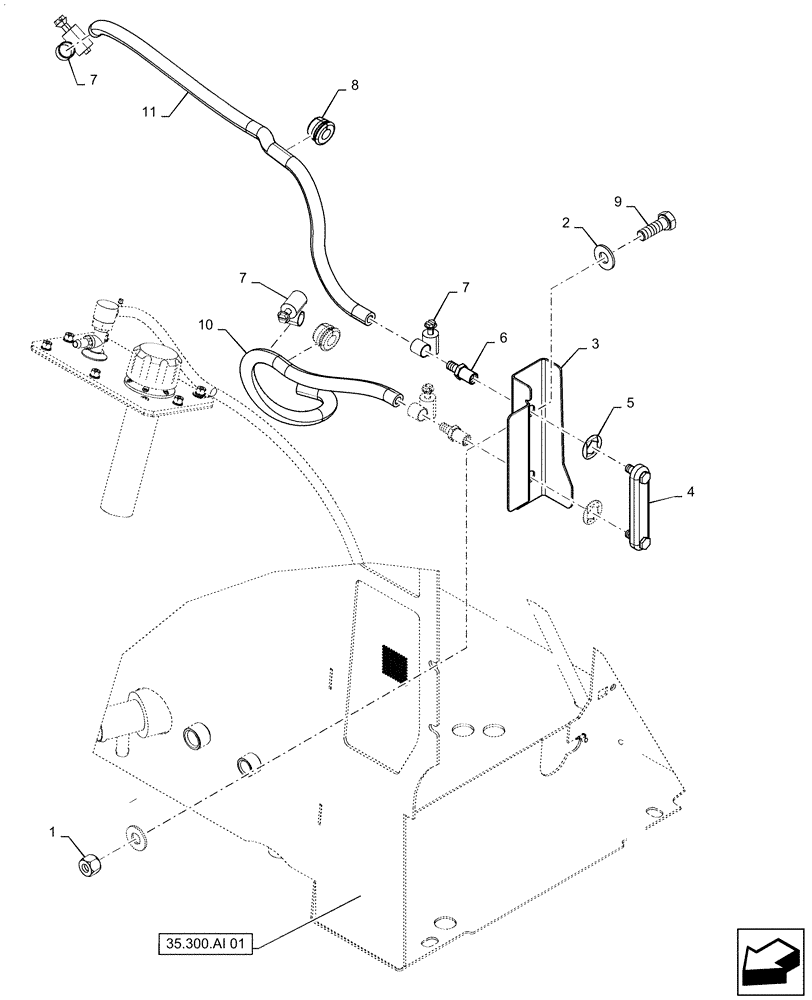

Запчасти Case 521F (35.300.AI[02]) - HYDRAULIC OIL RESERVOIR SIGHT GAUGE (35) - HYDRAULIC SYSTEMS

1

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

2

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

3

47771145

BRACKET

Sight Gauge Mounting

1шт.

4

86988366

SIGHTGLASS

Hydraulic Oil

1шт.

5

131-141

PUSH-ON NUT,.74", Push-on

2шт.

6

76086829

HYD CONNECTOR

Sight Gauge

2шт.

7

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

8

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

10

47579096

HOSE,12.5mm ID x 815mm L, SAE100R6

Sight Gauge, Lower

1шт.

11

47941945

HOSE,12.5mm ID x 910mm L, SAE100R6

Sight Gauge, Upper

1шт.
