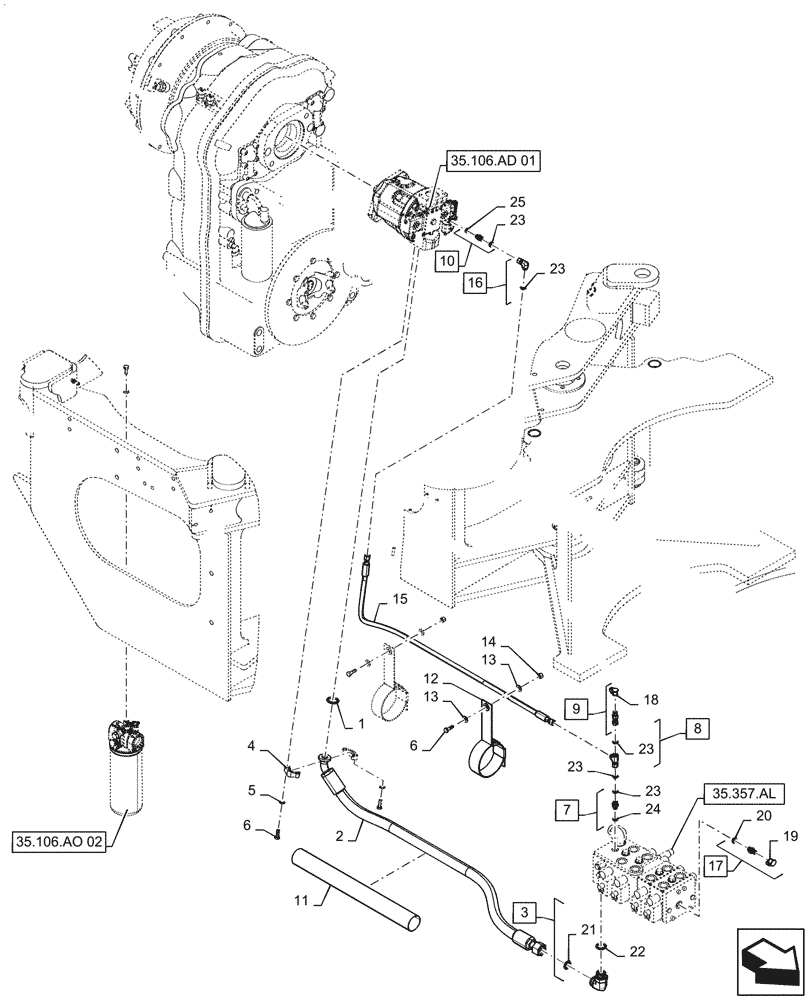

Запчасти Case 521F (35.106.AO[01]) - HYDRAULIC PUMP TO LOADER CONTROL VALVE LINES (35) - HYDRAULIC SYSTEMS

1

238-6219

O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro

1шт.

2

404041A1

HOSE ASSY.

Pump Pressure, to Loader Control Valve

1шт.

3

86580180

90 ELBOW,90 Degree, 1-7/16"-12 ORFS x M33 x 2.0 ORB

Incl 21, 22

1шт.

4

A12306

FLANGE

Split Half Clamp

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

6шт.

7

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 23, 24

1шт.

8

83961945

TEE,9/16"-18 ORFS x 9/16"-18 Fem Sw Run

Incl 23

1шт.

9

190117A1

COUPLING

Incl 18

1шт.

10

86593173

HYD CONNECTOR,9/16"-18 ORFS x M12 x 1.5 ORB

Incl 23, 25

1шт.

11

401525A1

HOSE PROTECTION,60.00 mm ID x 600.00 mm

Sleeve

1шт.

12

401527A2

STRAP

Articulation, Hose Retaining

2шт.

13

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

15

366008A1

HOSE ASSY.

Pump Load Sense

1шт.

16

84989411

ELBOW,90 Degree, 9/16"-18 ORFS x 9/16"-18 Fem Sw

Incl 23

1шт.

17

178889A1

DIAGNOSTIC COUPLER

Incl 19, 20

1шт.

18

H434163

DUST CAP

Diagnostic Connector

1шт.

19

143349A1

DUST CAP

Diagnostic Connector

1шт.

20

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

2шт.

21

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

22

86598104

O-RING,2.9mm Thk x 29.6mm ID, Cl 6, 90 Duro

2шт.

23

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

10шт.

24

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

2шт.

25

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

2шт.
