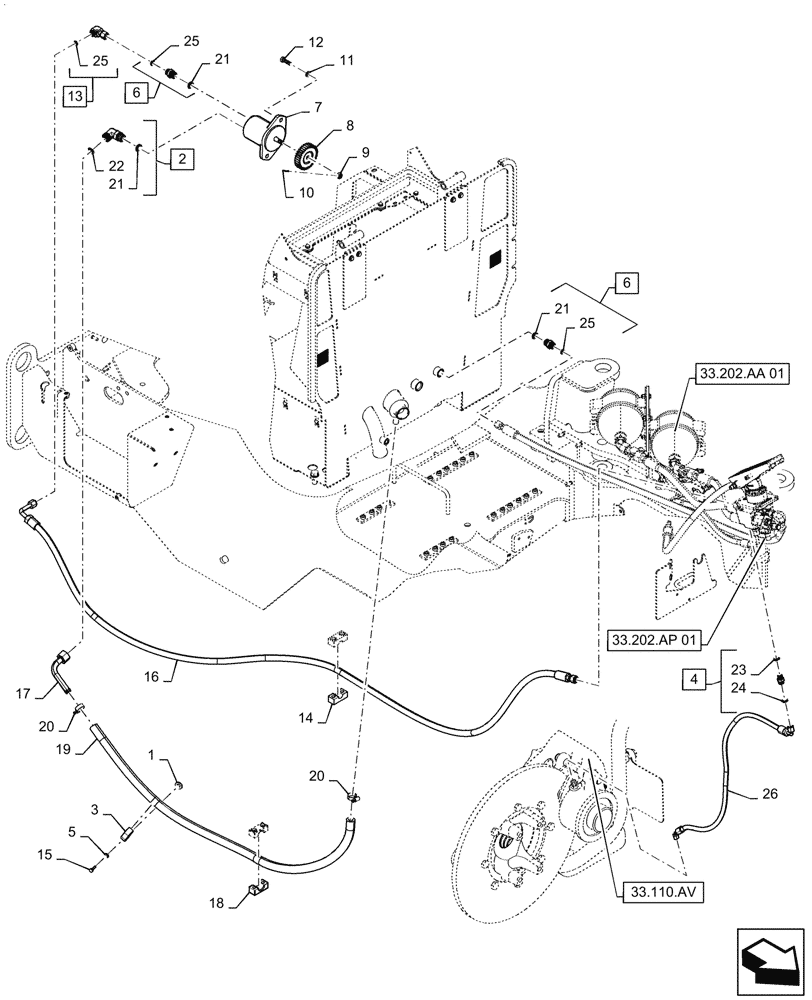

Запчасти Case 521F (33.202.CT[01]) - BRAKE PUMP AND LINE INSTALLATION (33) - BRAKES & CONTROLS

1

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

1шт.

2

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

Incl 21, 22

1шт.

3

9603626

CLAMP

Double Hose

1шт.

4

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 23, 24

2шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

1шт.

6

86579678

HYD CONNECTOR,13/16"-16 ORFS x M22 x 1.5 ORB

Incl 21, 25

2шт.

7

87402776

HYDRAULIC PUMP,14 CC

Brake Pump

1шт.

8

86985892

GEAR

Brake Pump Drive

1шт.

9

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

10

432-616

COTTER PIN,3/32" x 1"

1шт.

11

892-11012

LOCK WASHER,M12

2шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 25

1шт.

14

8501052

SPECIAL CLAMP

Block, Tube Mounting

1шт.

15

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

1шт.

16

47571798

HYDRAULIC HOSE

Brake Pump Pressure, Pump to Valve

1шт.

17

47839136

TUBE

Elbow, Brake Pump Suction

1шт.

18

372453A1

BLOCK

Tube Mounting

1шт.

19

47839145

HOSE

Brake Pump Suction, Serial Range: -NGF235721

1шт.

19

47954109

HOSE

Brake Pump Suction, Start Serial: NGF235722

1шт.

20

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

21

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

6шт.

22

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

24

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

25

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

26

84365811

FLEXIBLE HOSE,6.35mm ID x 1159mm L, SAE 100R17

Parking Brake

1шт.
