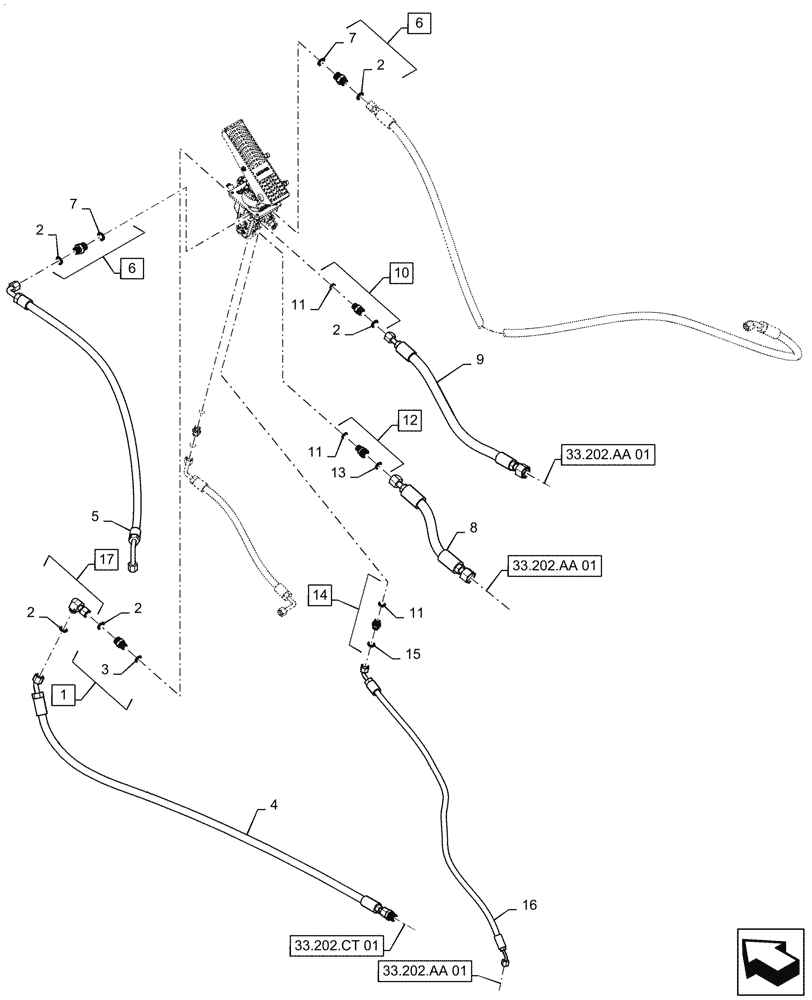

Запчасти Case 521F (33.202.CH[01]) - BRAKE VALVE HYDRAULIC LINES (33) - BRAKES & CONTROLS

1

86579676

HYD CONNECTOR,13/16" - 16 ORFS x M18 x 1.5 ORB

Incl 2, 3

1шт.

2

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

10шт.

3

86598101

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

4

84365893

FLEXIBLE HOSE,12.7mm ID x 1498mm L

Brake Valve to Hydraulic Tank

1шт.

5

84365815

FLEXIBLE HOSE,12.7mm ID x 1067mm L, SAE 100R17

Brake Valve to Hydraulic Fan Valve

1шт.

6

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 2, 7

2шт.

7

86598102

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

4шт.

8

47499924

HYDRAULIC HOSE

Brake Accumulator, Front

1шт.

9

84534893

FLEXIBLE HOSE,15.88mm ID x 693mm L, SAE 100R17

Brake Accumulator, Rear

1шт.

10

86579675

HYD CONNECTOR,13/16"-16 ORFS x M16 x 1.5 ORB

Incl 2, 11

1шт.

11

86598100

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

6шт.

12

87389189

HYD CONNECTOR,12.5 - 14 ORFS x 7 - 14 ORB

M16 X 1.5, Incl 11, 13

1шт.

13

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

14

86579672

HYD CONNECTOR,11/16"-16 ORFS x M16 x 1.5 ORB

Incl 11, 15

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

16

84365810

FLEXIBLE HOSE,9.53mm ID x 616mm L, SAE 100R17

Parking Brake Accumulator

1шт.

17

84989383

90 ELBOW,90 Degree, 13/16"-16 ORFS x 13/16"-16 Fem Sw

Incl 2

1шт.
