(33.202.AP[03]) - VAR - 782122, 424235 - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES

Запчасти Case 521F (33.202.AP[03]) - VAR - 782122, 424235 - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES (33) - BRAKES & CONTROLS

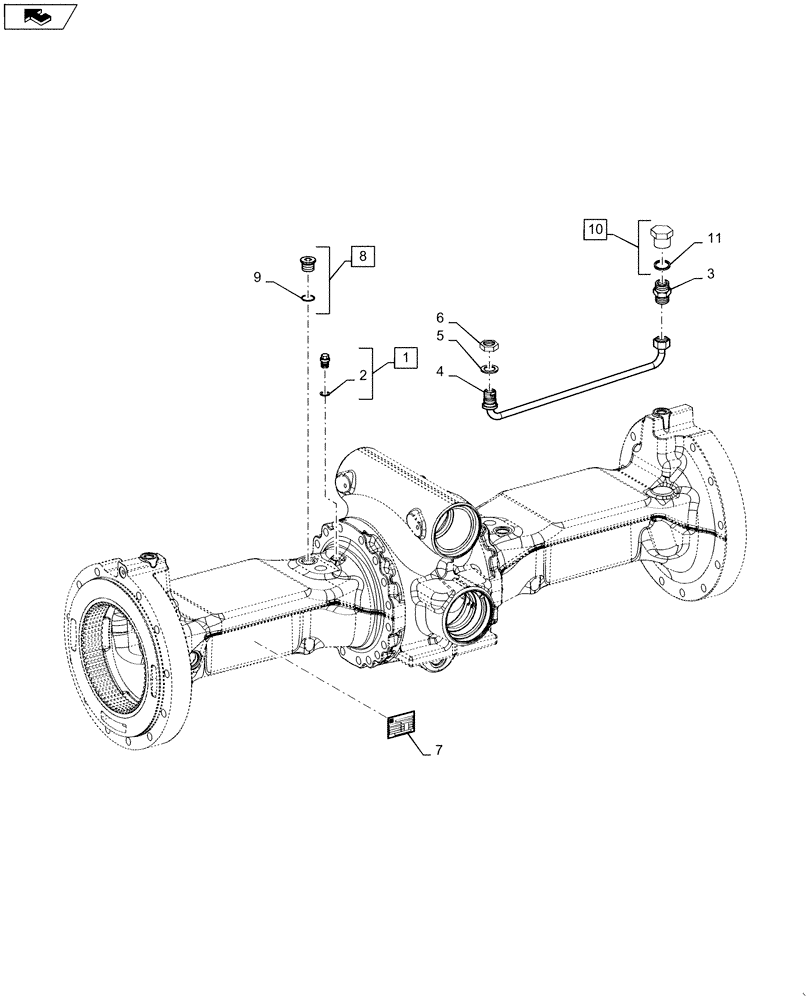

Схема запчастей Case 521F - (33.202.AP[03]) - VAR - 782122, 424235 - BRAKE LINE INSTALLATION, STANDARD AND HEAVY DUTY AXLES (33) - BRAKES & CONTROLS
6
1
9
10
2
home
11
7
3
8
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100113A1

PLUG

Screw, M10 x 1, Incl 2

2шт.

2

A52231

SEALING RING

10.2mm ID x 13.4mm OD x 1mm Thk

2шт.

3

87743748

SLEEVE

Screw-In

2шт.

4

87743749

BRAKE LINE

2шт.

5

79107839

O-RING

Brake Line

2шт.

6

8603619

TUBE NUT

Axle Cooler

2шт.

7

8603726

PLATE

Name

1шт.

8

84352088

HEX SOCKET PLUG

Incl 9

2шт.

9

79096828

O-RING

0.078" Thk X 7.48" ID, 70 Duro

1шт.

10

84329402

PLUG

Screw, Incl 11

2шт.

11

100080A1

O-RING,2mm Thk x 19mm ID, 70 Duro

1шт.
