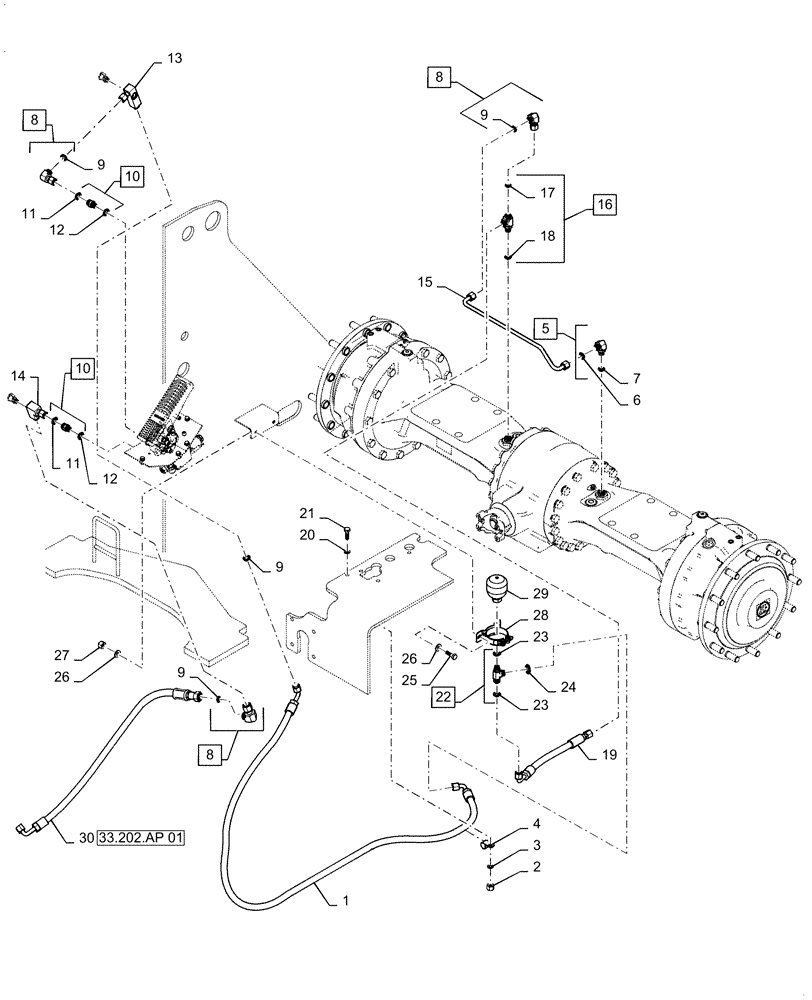

Запчасти Case 521F (33.202.AP[02]) - VAR - 424235 - HEAVY DUTY BRAKE LINE INSTALLATION (33) - BRAKES & CONTROLS

1

84569574

FLEXIBLE HOSE,12.7mm ID x 2335mm L, SAE 100R1

Brake Valve to Accumulator Front

1шт.

2

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

4

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

5

700-305

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 6, 7

1шт.

6

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

8

701-320

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Female ORFS

Incl 9

3шт.

9

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

10

700-169

HYD CONNECTOR,13/16" - 16 Male ORFS x M16 x 1.5 Male ORB

Incl 11, 12

2шт.

11

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

2шт.

12

637-63133

O-RING,2.2mm Thk x 13.3mm ID, Cl 6, 90 Duro

2шт.

13

372031A3

FITTING

Declutch

1шт.

14

377754A1

FITTING

Diagnostic

1шт.

15

87552628

TUBE,10.2 mm ID x 12.7 mm OD x 480, 50 mm L

Front Axle Brake

1шт.

16

700-412

TEE,13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS x M18 x 1.5 Male ORB

Incl 17, 18

1шт.

17

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

18

637-63153

O-RING,2.2mm Thk x 15.3mm ID, Cl 6, 90 Duro

1шт.

19

84537498

FLEXIBLE HOSE,12.7mm ID x 400mm L, SAE 100R1

Accumulator Front Axle

1шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

21

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

22

84218880

RUN TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 9/16" - 18 ORB

Incl 23, 24

1шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

26

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

27

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

28

84272713

CLAMP,73mm - 79mm

1шт.

29

84393492

ACCUMULATOR

Brake Damping

1шт.

30

84535131

FLEXIBLE HOSE,12.7mm ID x 1138.4mm L, SAE 100R1

1шт.
