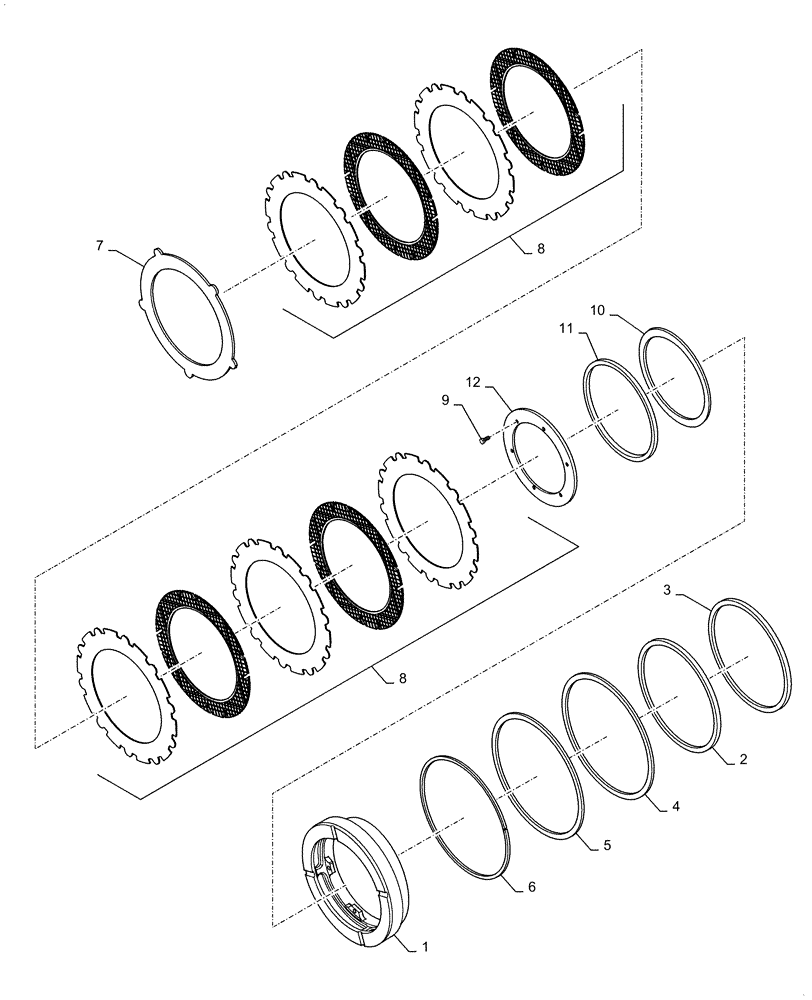

Запчасти Case 521F (33.202.AK[01]) - VAR - 424235 - FRONT AND REAR AXLE BRAKE ASSEMBLY, HEAVY DUTY (33) - BRAKES & CONTROLS

1

84396188

PISTON

Housing Ring

1шт.

2

8605314

SEAL,298mm ID x 310mm OD x 8mm Thk

Brake Piston

1шт.

3

8603577

RING

Piston Support

1шт.

4

8605315

SEAL

Brake Piston

1шт.

5

8603579

RING

Brake Pack

1шт.

6

8603580

SNAP RING

Brake Piston Guide

1шт.

7

84150637

SHIM

End

1шт.

8

84572904

SERVICE KIT

Brake Discs, Available in Service Kit Only

4шт.

9

84395924

SCREW

Protective Cover Mounting

6шт.

10

84329424

CUP WASHER

Brake Piston

1шт.

11

84329425

SPRING CUP

Brake Piston

1шт.

12

84329427

PROTECTIVE COVER

Ring

1шт.
