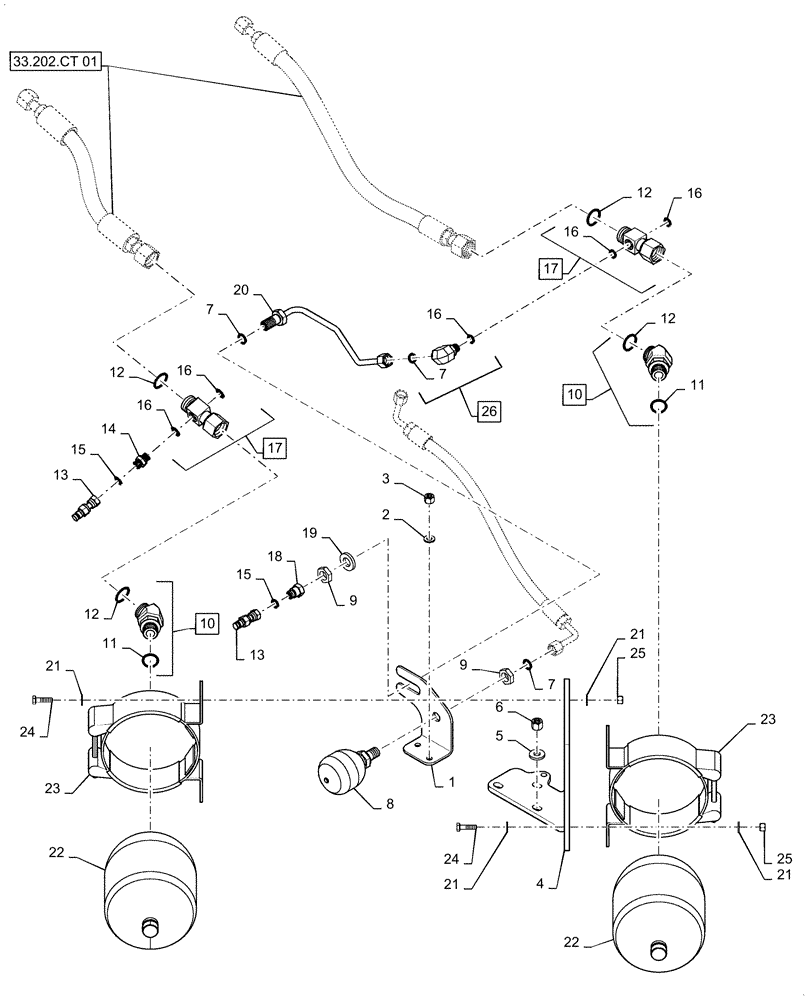

Запчасти Case 521F (33.202.AA[01]) - BRAKE ACCUMULATOR INSTALLATION (33) - BRAKES & CONTROLS

1

87724967

BRACKET

Parking Brake Accumulator

1шт.

2

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

3

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

4

47500108

BRACKET

Brake Accumulator

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

3шт.

6

832-10412

NUT,M12 x 1.75, Cl 8

3шт.

7

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

8

8500209

ACCUMULATOR

Parking Brake

1шт.

9

701-909

NUT,11/16" - 16

2шт.

10

86639055

45 ELBOW,45 Degree, 1 3/16"-12 ORFS x M27 x 2 ORB

Incl 11, 12

2шт.

11

86598103

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

4шт.

12

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

13

190117A1

COUPLING

Diagnostic, W/ Dust Cap

2шт.

14

700-153

HYD CONNECTOR,9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

1шт.

15

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

16

86598099

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

10шт.

17

372033A1

FITTING

Incl 12, 16

2шт.

18

201-145

REDUCER,9/16"-18 Male x 11/16"-16 Fem, ORFS

1шт.

19

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

1шт.

20

87724968

TUBE,9.525 mm OD

Diagnostic Fitting, Serial Range: -NGF235721

1шт.

20

47944678

HOSE

, Start Serial: NGF235722

1шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

8шт.

22

84353396

ACCUMULATOR

Brake Main, Serial Range: -NGF235721

2шт.

22

87728740

ACCUMULATOR

, Start Serial: NGF235722

2шт.

23

8501315

CLAMP,167mm - 175mm

Accumulator

2шт.

24

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

26

86579686

90 ELBOW,11/16"-16 ORFS x M14 x 1.5 ORB

Incl 7, 16

1шт.
