(25.108.AC) - VAR - 782122 - FINAL DRIVE ASSEMBLY, STANDARD

Запчасти Case 521F (25.108.AC) - VAR - 782122 - FINAL DRIVE ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM

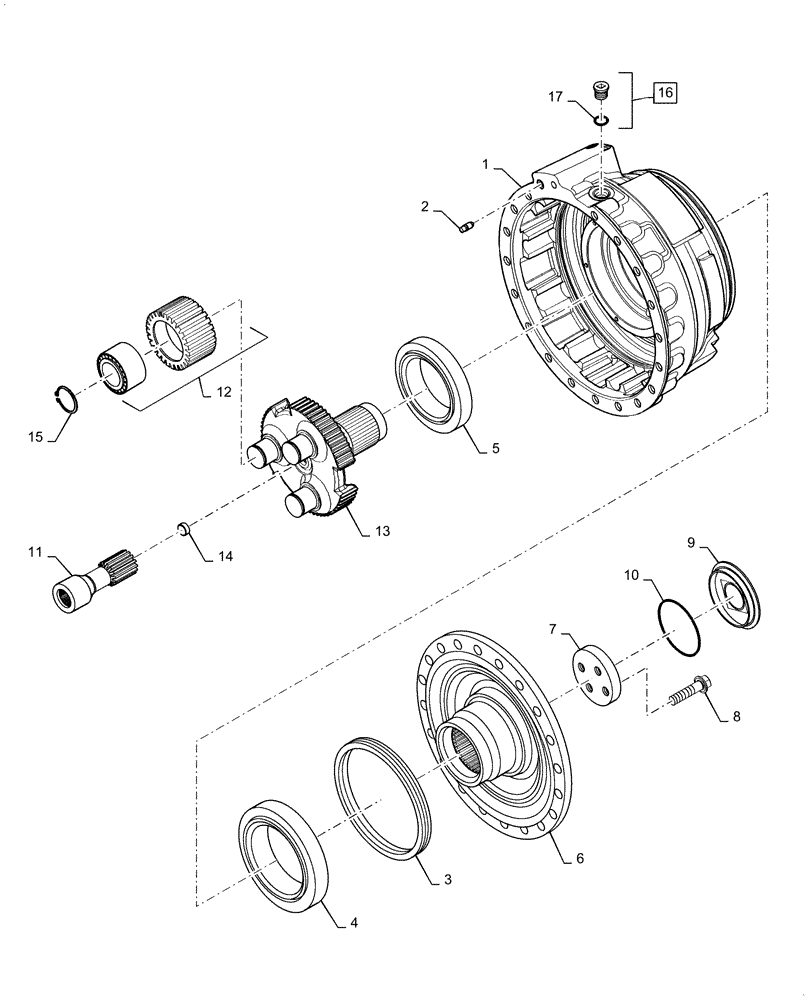

Схема запчастей Case 521F - (25.108.AC) - VAR - 782122 - FINAL DRIVE ASSEMBLY, STANDARD (25) - FRONT AXLE SYSTEM
2
6
14
3
4
17
8
1
15
7
10
13
11
5
9
16
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84496956

HOUSING

Axle

1шт.

2

76088742

VALVE

Vent

1шт.

3

84150634

SEAL

Wheel End

1шт.

4

47852582

SPH ROLLER BEARING

Cone and Cup, Outer Housing

1шт.

5

87743209

TAPERED BEARING

Cone and Cup, Inner Housing

1шт.

6

87743210

SHAFT

Output

1шт.

7

87743211

COVER

Mounting

1шт.

8

84329412

LOCK SCREW

Cover

4шт.

9

8603567

COVER

Wheel Flange

1шт.

10

8603527

O-RING

Planetary

1шт.

11

84395432

SUN GEAR

Planetary Holder

1шт.

12

84497842

GEAR

Planetary

3шт.

13

84395439

SHAFT, PLANETARY CAR

Axle Drive Group

1шт.

14

8603571

PLUG

Planetary

1шт.

15

87358698

SNAP RING

Planetary Retaining

3шт.

16

84401558

PLUG

Housing, Incl 17

1шт.

17

8603208

O-RING,2mm Thk x 21mm ID

Housing Plug

1шт.
