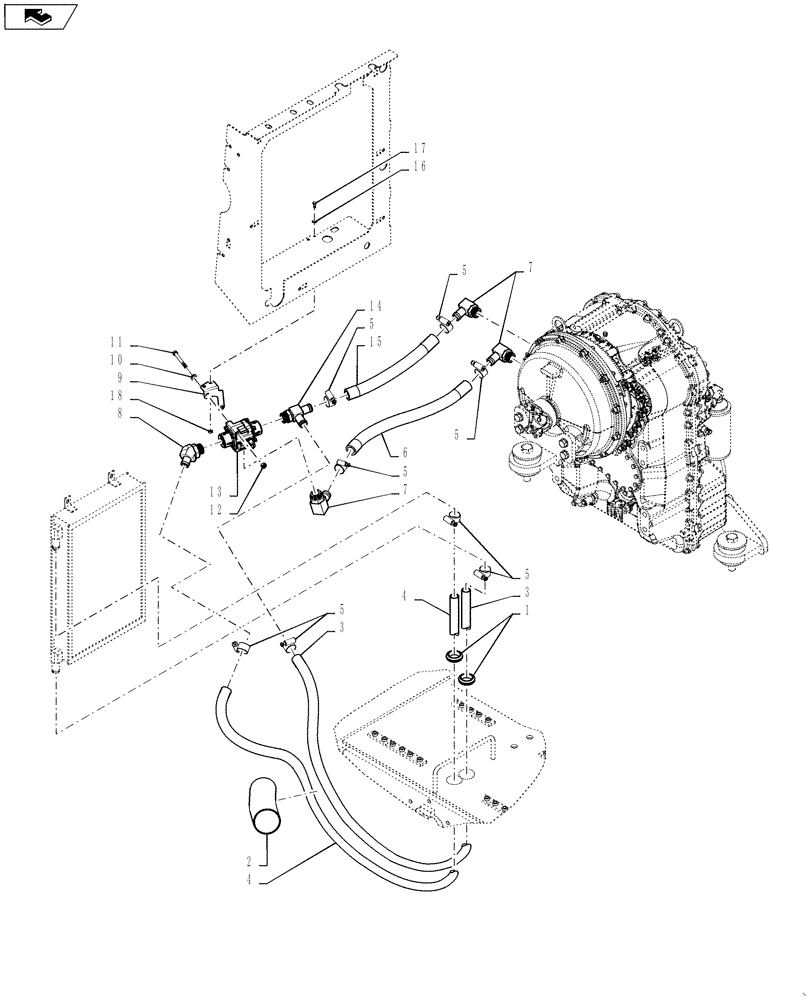

Запчасти Case 521F (21.105.02) - TRANSMISSION HYDRAULIC LINES (21) - TRANSMISSION

1

248-1185

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

Rubber

2шт.

2

412511A1

HOSE PROTECTION

Sleeve

1шт.

3

84195577

HOSE

Cooler To Valve

1шт.

4

84195576

HOSE

Valve To Cooler

1шт.

5

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

8шт.

6

84195579

HOSE

Transmission To Valve

1шт.

7

87393628

ADAPTER,1" Hose Barb x 1-5/16" - 12 ORB

3шт.

8

87029968

HYD CONNECTOR

1шт.

9

84195575

BRACKET

Bypass Valve CNH Black

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

11

827-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

13

84138750

VALVE

Bypass

1шт.

14

235067A1

TEE

1шт.

15

84195578

HOSE

Valve To Transmission

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

18

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.
