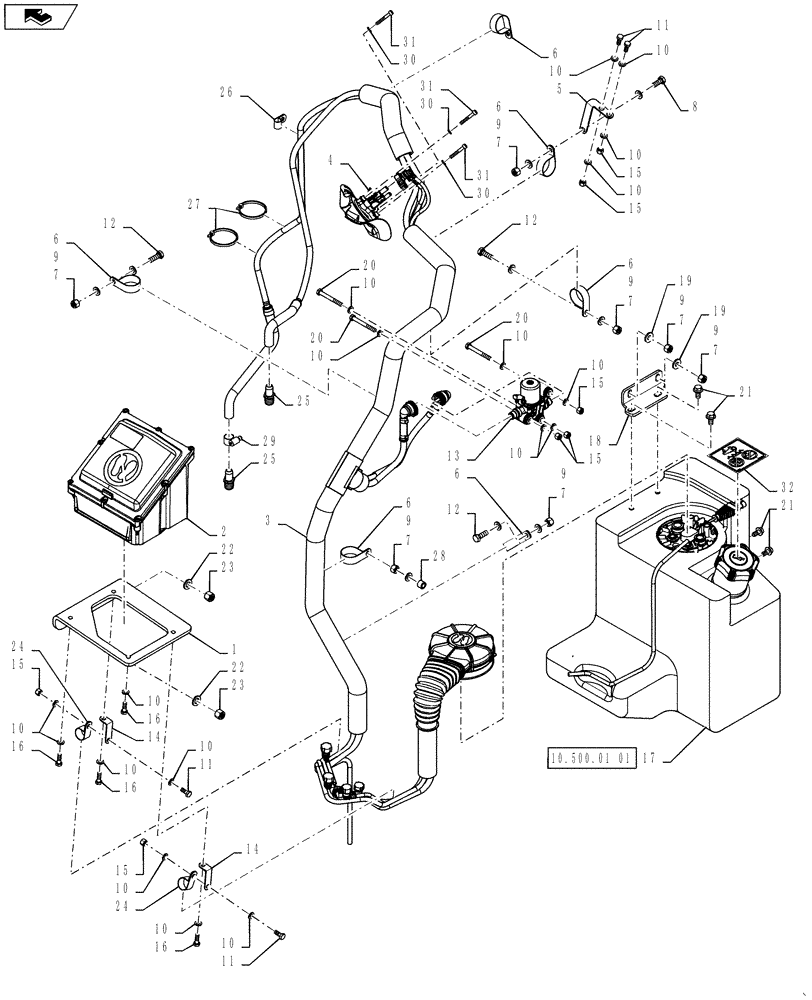

Запчасти Case 521F (10.500.01) - DEF TANK INSTALLATION (10) - ENGINE

1

84299369

BRACKET

1шт.

2

84246892

MODULE

Denox Supply

1шт.

2

84246892R

REMAN-MODULE

Denox Supply

1шт.

2

84246892C

CORE-MODULE

Return Number

1шт.

3

84353778

FLEXIBLE HOSE

Def

1шт.

4

84247021

MODULE,Dosing Injector

Denox Urea Dosing

1шт.

5

84302964

BRACKET

1шт.

6

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

6шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

9шт.

8

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

9

832-10410

NUT,M10 x 1.5, Cl 8

7шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

18шт.

11

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

4шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

3шт.

13

84151635

HEATER VALVE

1шт.

14

84302963

BRACKET

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

7шт.

16

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

17

NSS

NOT SOLD SEPARAT

Assembly Not Available, Incl in Fig 10.500.01 (01)

1шт.

18

84491828

BRACKET

Tank Hold

1шт.

19

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

20

827-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

3шт.

21

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

22

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

23

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

24

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

2шт.

25

87302136

FITTING,5/8" Hose x 1/2" NPTF, Barbed

2шт.

26

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

28

84238738

SPACER,10.34mm ID x 15.88mm OD x 12mm L

1шт.

29

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

1шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

3шт.

31

84233542

HEX SOC SCREW

3шт.

32

84284896

DECAL,DEF TANK identification label

1шт.

33

84254852

FILTER

Main Filter

1шт.

34

84247272

FILTER,In-Line

Inline Filter

1шт.

35

47401714

FILTER HEAD

Head for 33

1шт.
