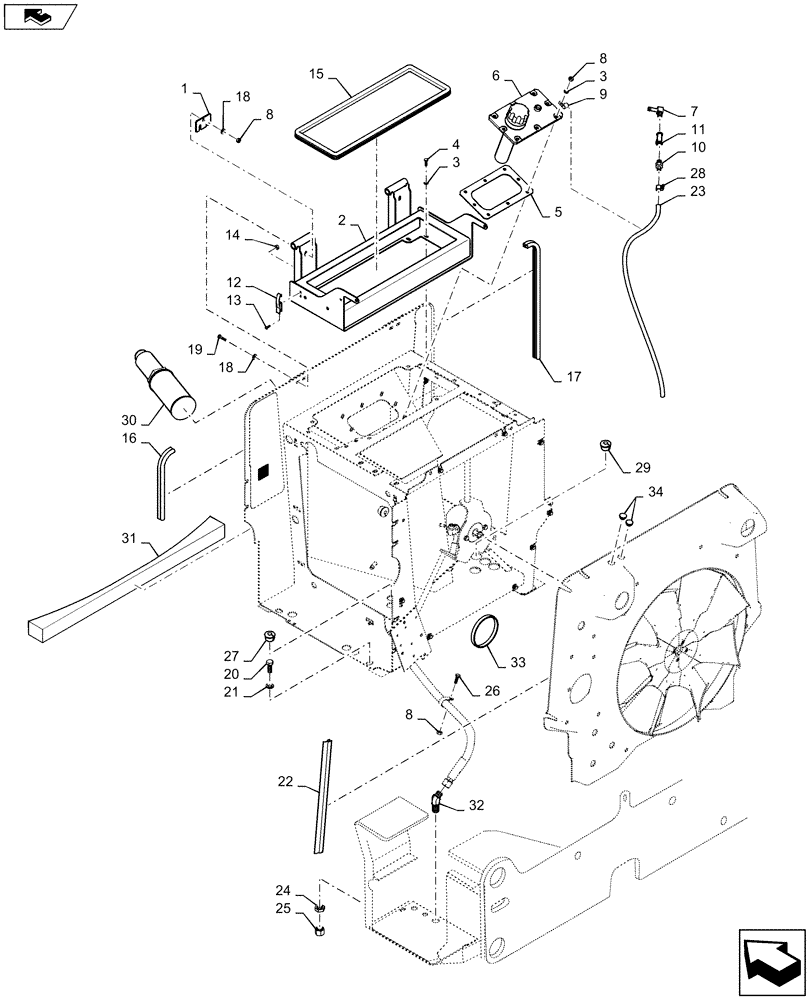

Запчасти Case 521F (10.400.03) - COOLING SYSTEM, FAN MOUNTING (10) - ENGINE

1

426945A1

PLATE

Shim

2шт.

2

398882A3

SUPPORT ASSY.

CNH Black

1шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

15шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

5

379587A2

GASKET

1шт.

6

8606005

CAP

Neck Hydraulic Tank

1шт.

6

87757884

FILLER CAP

Filler Cap

1шт.

7

217-133

ELBOW,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

1шт.

8

832-10408

NUT,M8 x 1.25, Cl 8.8

12шт.

9

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

10

8606006

VALVE, CHECK

1шт.

11

217-1142

TEE,3/8"-18 Female x 3/8"-18 Male Br

1шт.

12

60-4640T1

LATCH

1шт.

13

440-1088

SCREW,Cross Pan Hd, #8-32 x 1/2"

2шт.

14

225-14108

NUT,#8-32

2шт.

15

382665A1

SEAL

A/C Condensor

1шт.

16

394866A1

SEAL

Hood Front

1шт.

17

394867A1

SEAL

Hood Front

1шт.

18

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

19

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

4шт.

20

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

21

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

4шт.

22

47466956

SEAL,2155mm L

Seal Shroud

1шт.

23

408523A1

HOSE

Hose Hydraulic Tank Breather

1шт.

24

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

1шт.

25

218-335

CAP,37 Degree, 1 1/16"-12

1шт.

26

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

27

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

1шт.

28

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

29

198823C1

GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk

1шт.

30

L128515

STRAINER ELEMENT

Filter

1шт.

31

84195909

SEAL

Cooling Frame Foam

1шт.

32

218-717

ELBOW,45 Degree Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

33

47466954

SEAL,12mm W x 418mm L x 6.35mm Thk

Air Cleaner Intake Hose

1шт.

34

47381606

PLUG

2шт.
