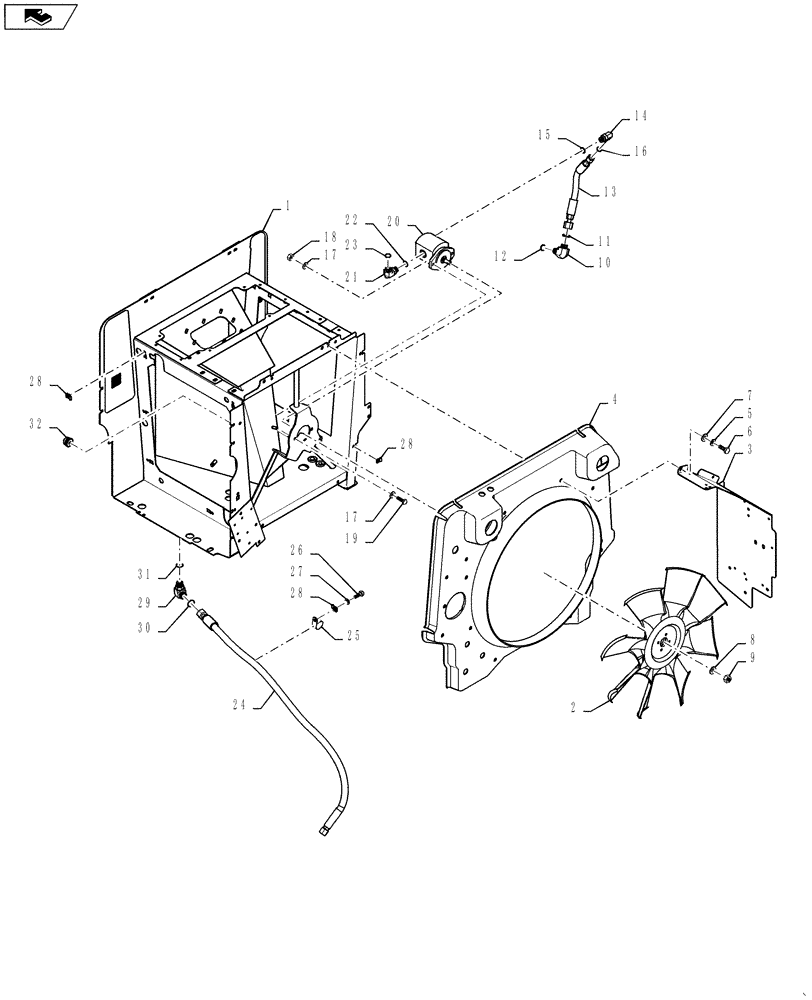

Запчасти Case 521F (10.400.02) - FAN DRIVE AND COOLING SYSTEM (10) - ENGINE

1

84528083

FRAME

Hydraulic Reservoir

1шт.

2

87700024

FAN,8 Blades, 711.2mm OD

With Hub

1шт.

3

84338670

GUARD

Fan

1шт.

4

47465987

SHROUD

1шт.

5

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

9шт.

6

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

9шт.

7

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

5шт.

8

496-21053

WASHER,17/32" x 1 1/16" x .134"

1шт.

9

232-2448

NUT,1/2"-20, GC

1шт.

10

700-304

ELBOW,90 Degree Elbow, 11/16" - 16 Male ORFS x M14 x 1.5 Male ORB

Incl 11 - 12

1шт.

11

637-63113

O-RING,2.2mm Thk x 11.3mm ID, Cl 6

1шт.

12

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

13

87427292

HOSE ASSY.,6.35mm ID x 260mm L, SAE 100R17

Motor Drain

1шт.

14

700-378

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x M14 x 1.5 Male ORB

Incl 15 - 16

1шт.

15

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

16

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

17

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

19

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

20

87426773

HYDRAULIC MOTOR,GEAR, 14 CC

Reversable Fan Drive

1шт.

20

87426773R

REMAN-HYD MOTOR

1шт.

20

87426773C

CORE-MOTOR HYDRAULIC

Return number

1шт.

21

700-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Incl 22 - 23

1шт.

22

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

23

637-63193

O-RING,2.2mm Thk x 19.3mm ID, Cl 6, 90 Duro

1шт.

24

84352763

FLEXIBLE HOSE

Hydraulic Tank Drain

1шт.

25

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

26

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

9шт.

27

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

5шт.

28

84346910

SPRING NUT,M8

28шт.

29

700-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x M27 x 2 Male ORB

Incl 30 - 31

1шт.

30

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

31

637-64236

O-RING,2.9mm Thk x 23.6mm ID, Cl 6, 90 Duro

1шт.

32

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1шт.
