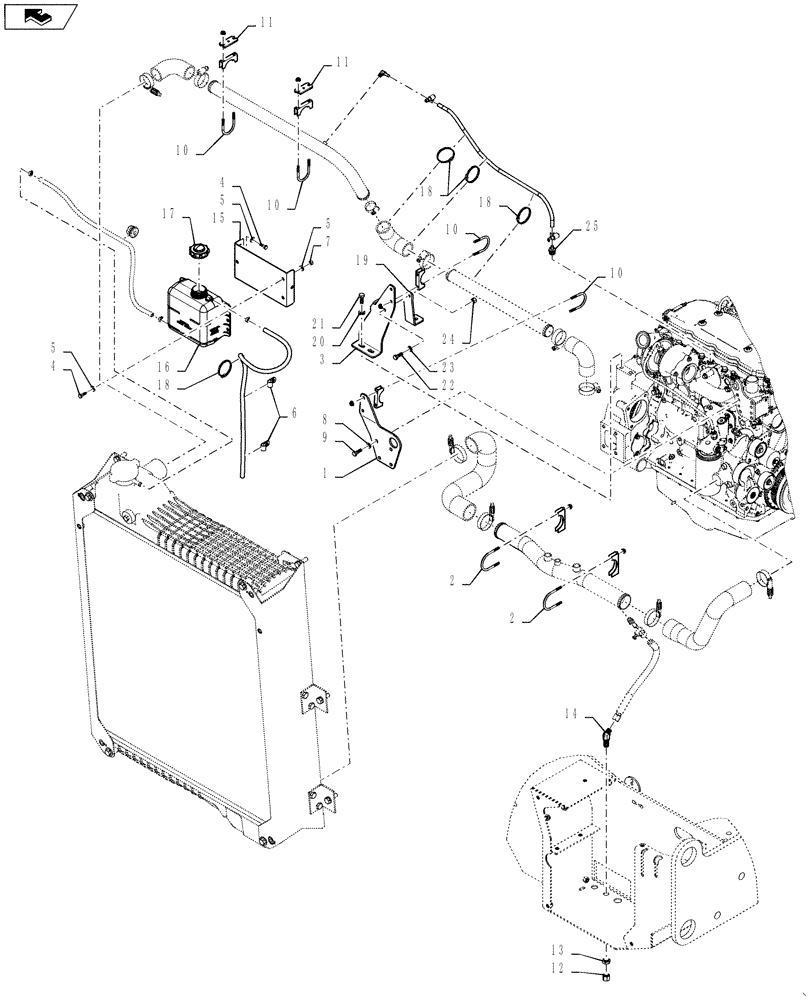

Запчасти Case 521F (10.400.01[01]) - RADIATOR HOSE AND TUBE MOUNTING (10) - ENGINE

1

84363164

BRACKET

Coolant Tube

1шт.

2

393632A1

CLAMP

U-Bolt

2шт.

3

84363165

BRACKET

Coolant Tube

1шт.

4

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

6шт.

5

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

10шт.

6

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

9

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

10

382189A1

CLAMP

4шт.

11

382188A2

PLATE

2шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

524036

BHD LOCK NUT,Blkhd, 3/4"-16

1шт.

14

218-715

ELBOW,45 Degree Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

1шт.

15

84338527

PLATE

Coolant Over Flow

1шт.

16

A184395

RESERVOIR

Coolant

1шт.

17

1547924C1

CAP

Coolant

1шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

4шт.

19

84363166

BRACKET

Tube Supporting Brace

1шт.

20

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

3шт.

21

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

22

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

1шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

24

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

25

87635840

VALVE

Check Valve

1шт.
