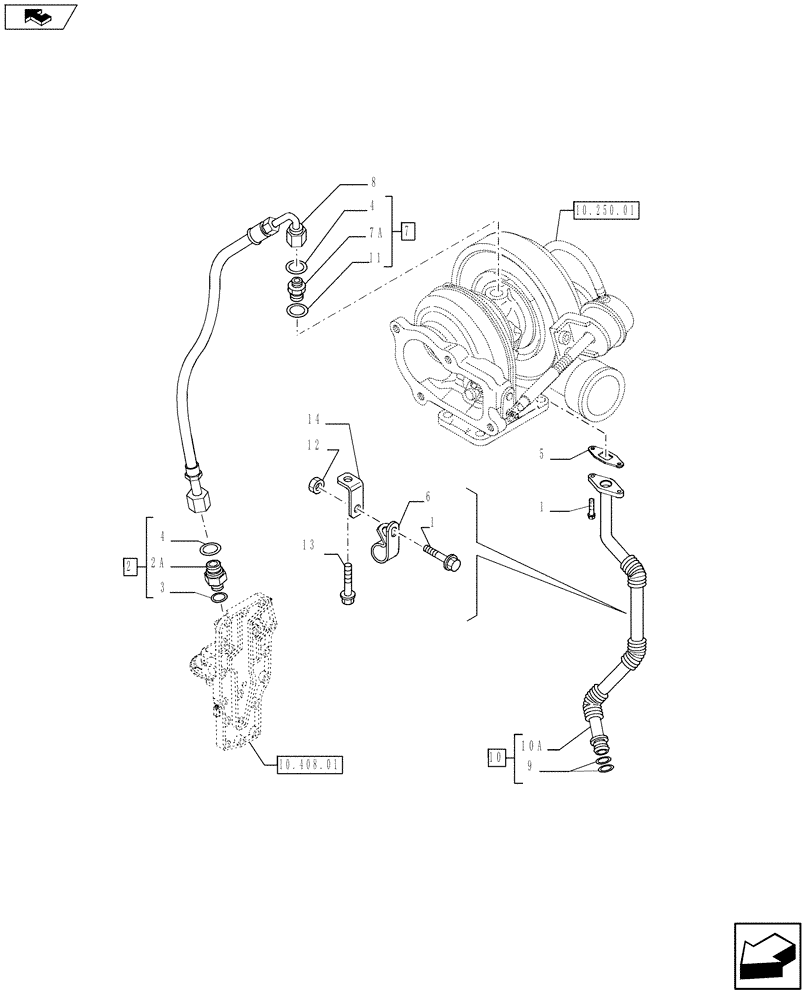

Запчасти Case 521F (10.304.05) - PIPING - ENGINE OIL (10) - ENGINE

1

2852101

FLANGE BOLT,Hex, M6 x 16mm

3шт.

2

2857015

HYD CONNECTOR,Hex, M12 x 1.5 x 6.7mm ID x 32mm L

ASSY

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

3

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

2шт.

5

4899467

GASKET

1шт.

6

4899519

CLAMP,M16, M6 Bolt

1шт.

7

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

ASSY

1шт.

7a

NSS

NOT SOLD SEPARAT

1шт.

8

2852679

HYDRAULIC HOSE

1шт.

9

4899058

O-RING,0.674" ID x 0.88" OD x 0.103"

2шт.

10

84518545

TUBE

ASSY

1шт.

10a

NSS

NOT SOLD SEPARAT

1шт.

11

4899106

HYD CONNECTOR,11/16" - 16 ORFS x M10 x 1.25 ORB

1шт.

12

2852197

FLANGE NUT,M6 x 1

1шт.

13

2852100

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

1шт.

14

2852196

BRACKET

1шт.
