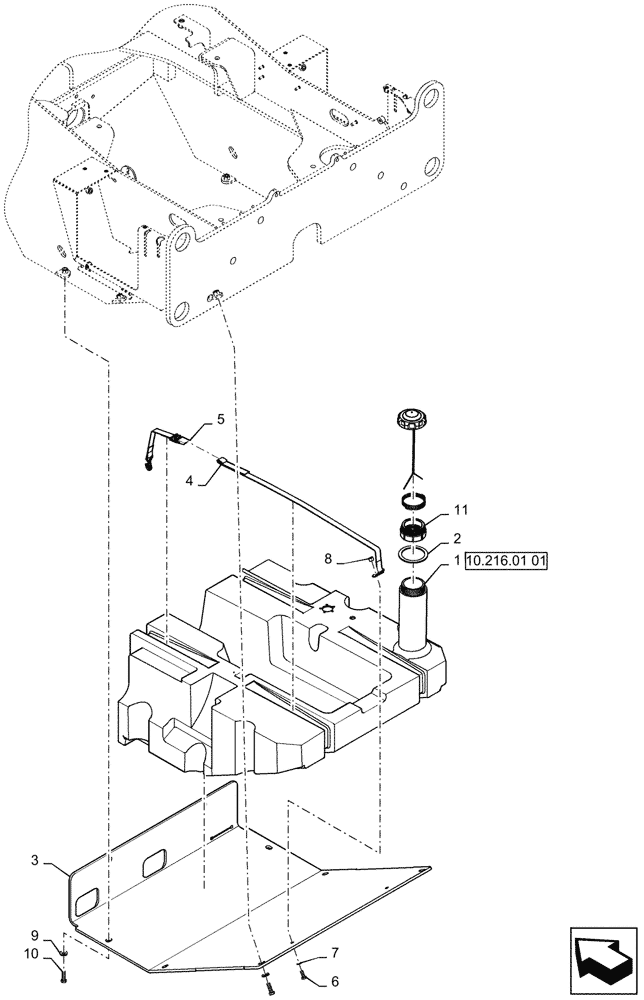

Запчасти Case 521F (10.216.01) - FUEL TANK IINSTALLATION (10) - ENGINE

1

87400409

FUEL TANK

Fuel Tank

1шт.

2

84144829

GASKET,67mm ID x 84mm OD x 3mm Thk

Adaptor

1шт.

3

87315595

PLATE

2шт.

4

366904A1

SECURING STRAP

Long

2шт.

5

366905A1

SECURING STRAP

Short

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

7

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

2шт.

8

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

9

627-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 10.9, Full Thd

6шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

6шт.

11

84130479

ADAPTER

Fuel Tank

1шт.
