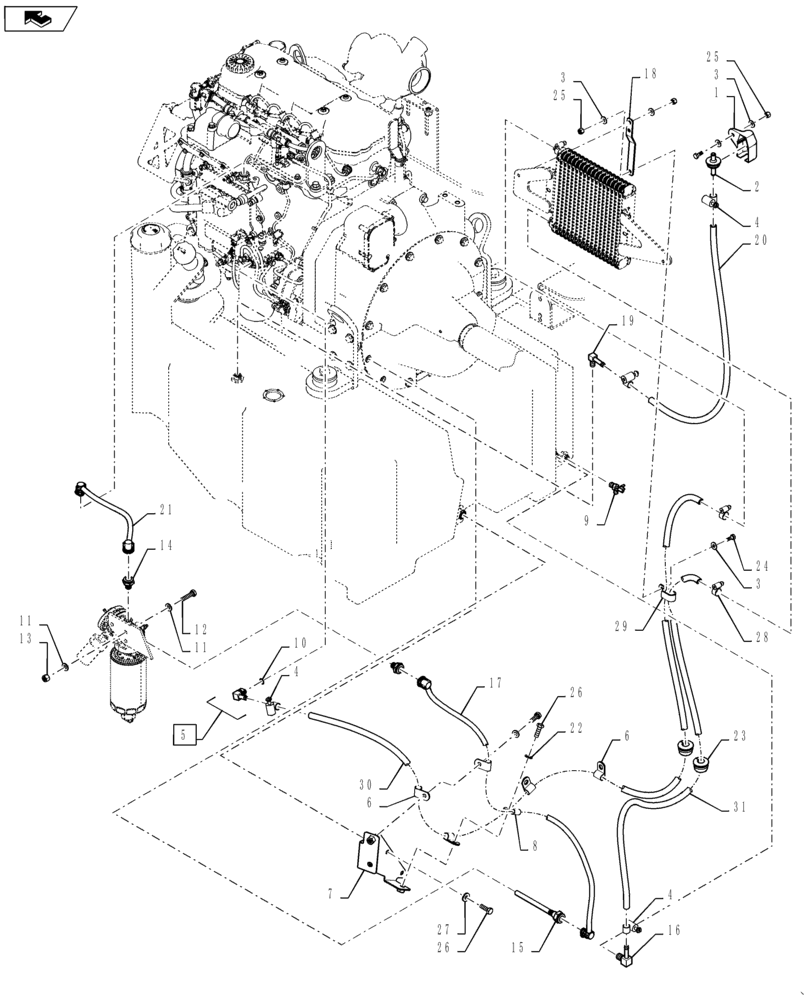

Запчасти Case 521F (10.210.01) - FUEL LINE INSTALLATION (10) - ENGINE

1

186814A1

CAP

Tank Vent

1шт.

2

T103750

BREATHER

Valve Breather

1шт.

3

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

6шт.

4

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

4шт.

5

87400460

90 ELBOW

Incl 10

1шт.

6

515-25159

CLAMP,5/8", Insul, 1/2" Bolt

4шт.

7

87704890

BRACKET

Fuel Hose

1шт.

8

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

9

217-92

COCK

Fuel Tank Drain

1шт.

10

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

1шт.

11

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

12

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

2шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

14

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

2шт.

15

8602537

TUBE,12mm OD x 171mm L

Tank Draw

1шт.

16

87017042

FITTING,90 Degree, 3/8" Hose x 3/8" NPTF Beaded

1шт.

17

87620436

TUBE,12.5 mm OD x 1096 mm L

1шт.

18

84488658

BRACKET

Radiator Hoses

1шт.

19

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

20

31-2198

HOSE

Breather

1шт.

21

87620439

PLASTIC-RUBBER TUBE,12.5 mm OD x 453 mm L

Prefilter to Engine

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

23

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

2шт.

24

627-8020

BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

25

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

26

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

27

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

28

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

29

L101181

CLAMP,0.75" D Clamping pipes x 2

1шт.

30

398869A1

FUEL HOSE,9.53 mm ID x 2470.00 mm

To Fuel Radiator

1шт.

31

87549248

HOSE,9.50 mm ID x 1130.00 mm

Return to Tank

1шт.
