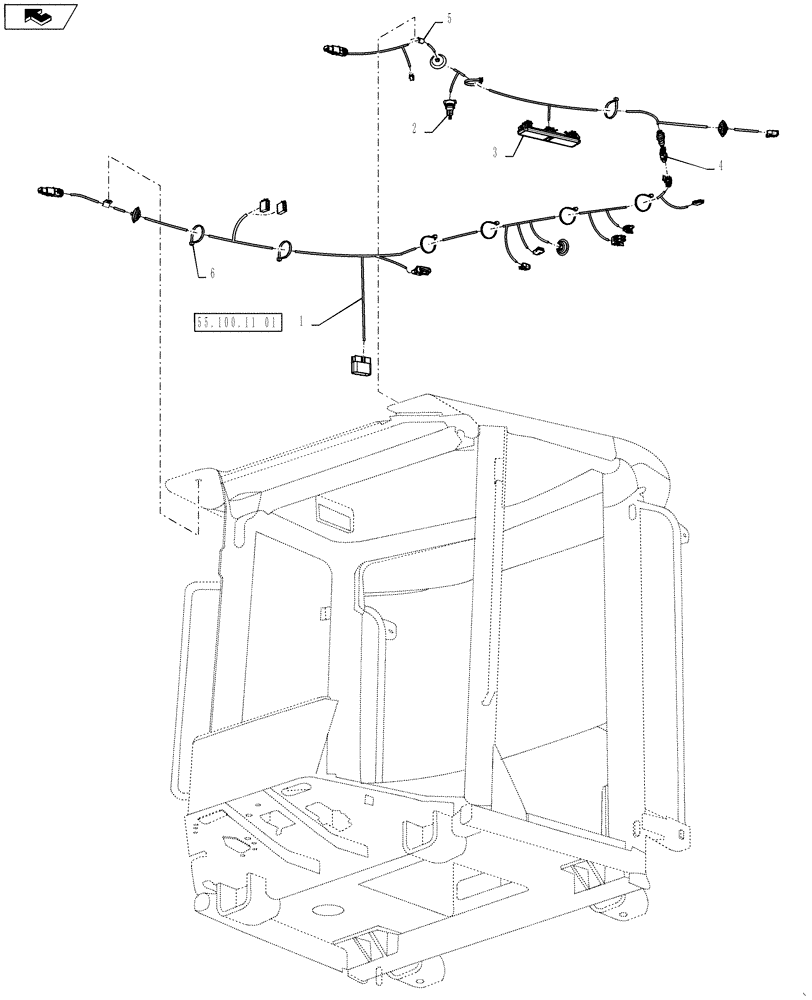

Запчасти Case 521F (90.150.07) - CAB ROOF WIRE HARNESS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84284957

HARNESS

See Fig. 55.100.11(01)

1шт.

2

82002966

POWER SOCKET,M18 x 1

1шт.

3

394799A1

LIGHT ASSY.,24 /28V, W

1шт.

4

87325760

SWITCH

Door

1шт.

5

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

2шт.

6

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

9шт.
