(90.120.02[03]) - SEAT ASSY MECHANICAL TOP VINYL AND CLOTH

Запчасти Case 521F (90.120.02[03]) - SEAT ASSY MECHANICAL TOP VINYL AND CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS

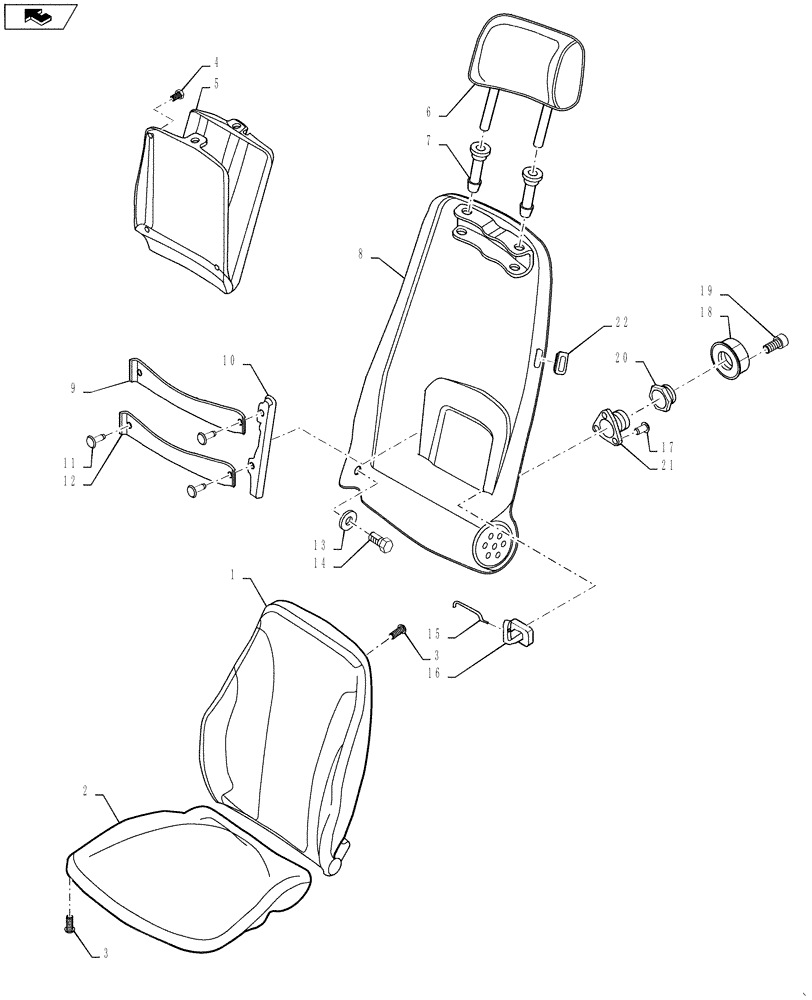

Схема запчастей Case 521F - (90.120.02[03]) - SEAT ASSY MECHANICAL TOP VINYL AND CLOTH (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
18
9
11
home
12
21
2
20
13
22
17
5
16
6
7
3
8
3
14
19
4
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

406877A1

CUSHION

Backrest Cushion Vinyl

1шт.

1

84293657

SEAT CUSHION

Backrest Case Only Cloth Seat

1шт.

2

406878A1

CUSHION, SEAT

Seat Cushion Vinyl

1шт.

2

87583734

SEAT BACK

Cushion Case Only Cloth Seat

1шт.

3

82034997

SCREW,M5 x 25mm

9шт.

4

82034863

SCREW,M4 x 8mm

3шт.

5

82034977

PLASTIC CASE

1шт.

6

84592635

SEAT HEADREST

Cloth

1шт.

6

47471286

SEAT HEADREST

Vinyl

1шт.

7

85811350

BUSHING

Backrest Extention

2шт.

8

87583735

PAN

Back Rest

1шт.

9

82034963

SUPPORT

Lumbar

1шт.

10

82034910

PLATE

1шт.

11

85811351

RIVET

3шт.

12

82034969

PLATE

Lumbar

2шт.

13

9960692

WASHER

5шт.

14

87583729

SPECIAL BOLT

1шт.

15

82034909

ROD

Linkage

1шт.

16

82034912

CARRIER

1шт.

17

47124903

RIVET

3шт.

18

82034964

HANDLE

1шт.

19

82034917

SCREW,M6 x 10mm

1шт.

20

82034916

PAWL

1шт.

21

82034911

BRAKE

Spring

1шт.

22

82034958

COVER

1шт.
