Запчасти Case 521F (90.120.02[02]) - SEAT BELT 2 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS

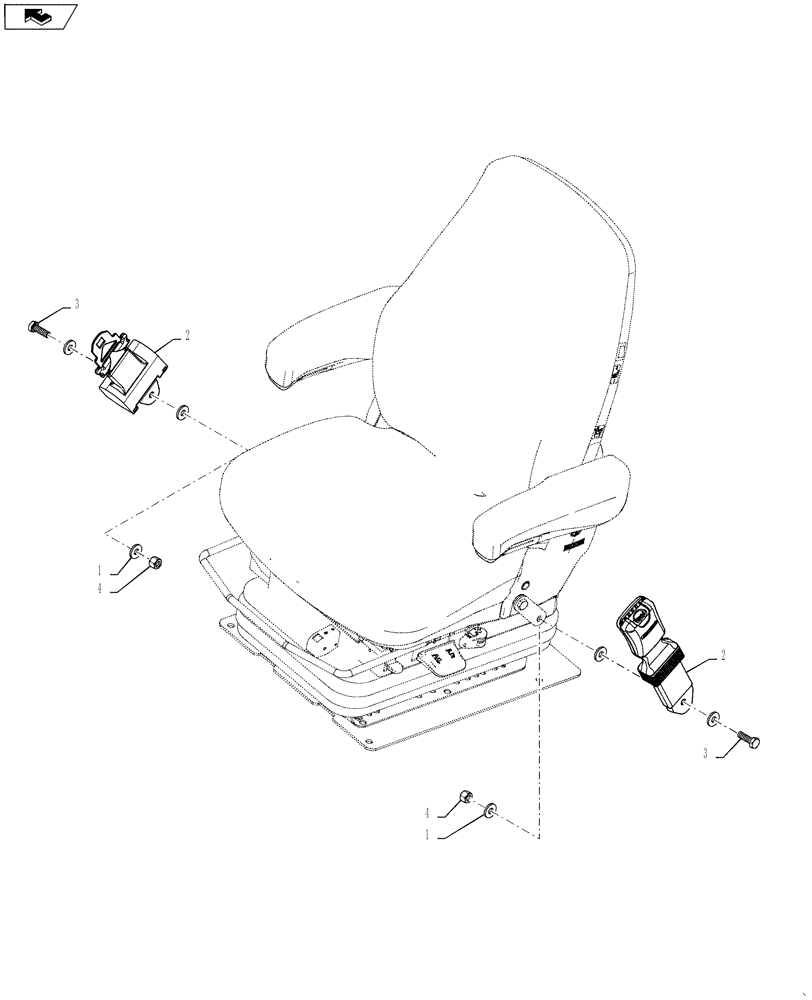

Схема запчастей Case 521F - (90.120.02[02]) - SEAT BELT 2 INCH (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
4
2
2
1
home
4
1
3

Артикул

Название

Примечание

Количество

1

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

6шт.

2

84425027

SEAT BELT,50.8mm W x 1219.2mm L

2 Inch

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

4

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

Выбрано товаров: 4
