(90.119.02) - COVERS, DRIVE BELT WITHOUT AIR CONDITIONING

Запчасти Case 521F (90.119.02) - COVERS, DRIVE BELT WITHOUT AIR CONDITIONING (90) - PLATFORM, CAB, BODYWORK AND DECALS

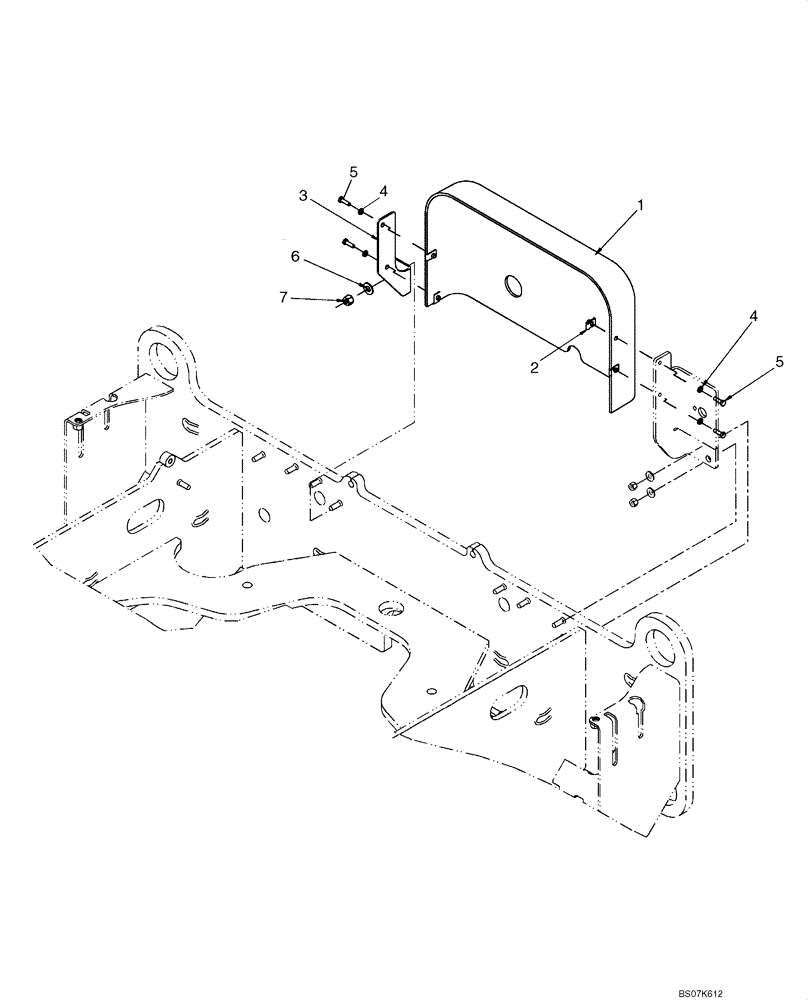

Схема запчастей Case 521F - (90.119.02) - COVERS, DRIVE BELT WITHOUT AIR CONDITIONING (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
4
6
5
5
3
2
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87408421

GUARD

Drive Belt

1шт.

2

833-40306

SPRING NUT,M6, U

4шт.

3

87669778

BRACKET

Engine Guard Mounting; RH

1шт.

4

892-11006

LOCK WASHER,M6

4шт.

5

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

4шт.

6

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

1шт.
