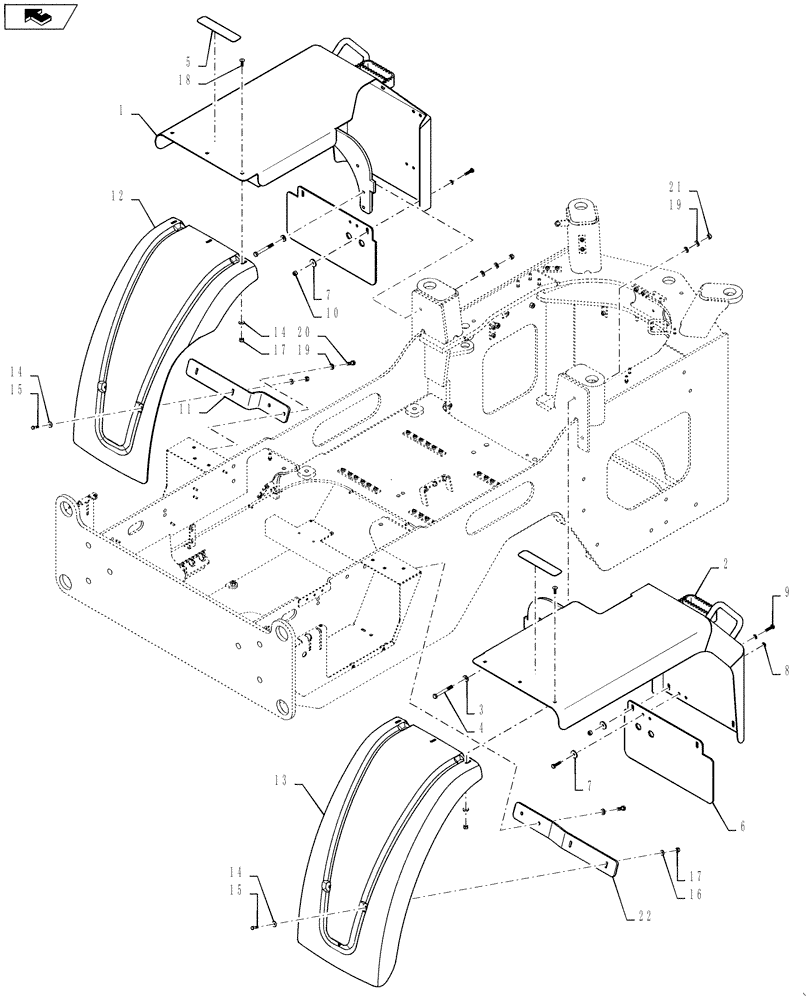

Запчасти Case 521F (90.116.07) - REAR FENDER, WIDE, INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87754699

SUPPORT

LH Platform

1шт.

2

87754701

SUPPORT

RH Platform

1шт.

3

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

4

827-12100

BOLT,Hex, M12 x 1.75 x 100mm, Cl 10.9

4шт.

5

D55216

PAD,2" x 9"

18шт.

6

87605774

MUDFLAP

Rear

1шт.

7

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

Zinc

6шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

9

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

6шт.

10

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

11

84352665

BRACKET

Rear Wide Fender

1шт.

12

84405950

REAR FENDER

Rear Wide LH

1шт.

13

87600969

FENDER

Rear Wide RH

1шт.

14

895-25008

WASHER,9mm ID x 24mm OD x 2mm Thk

10шт.

15

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

16

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

10шт.

18

612-6

CARRIAGE BOLT,M8 x 30mm, Class 4.6

6шт.

19

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

12шт.

20

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

21

829-1412

NUT,M12, Cl 10.9

4шт.

22

84405866

BRACKET

Right Hand Rear Fender

1шт.

23

47410500

MUDFLAP

Rear

1шт.
