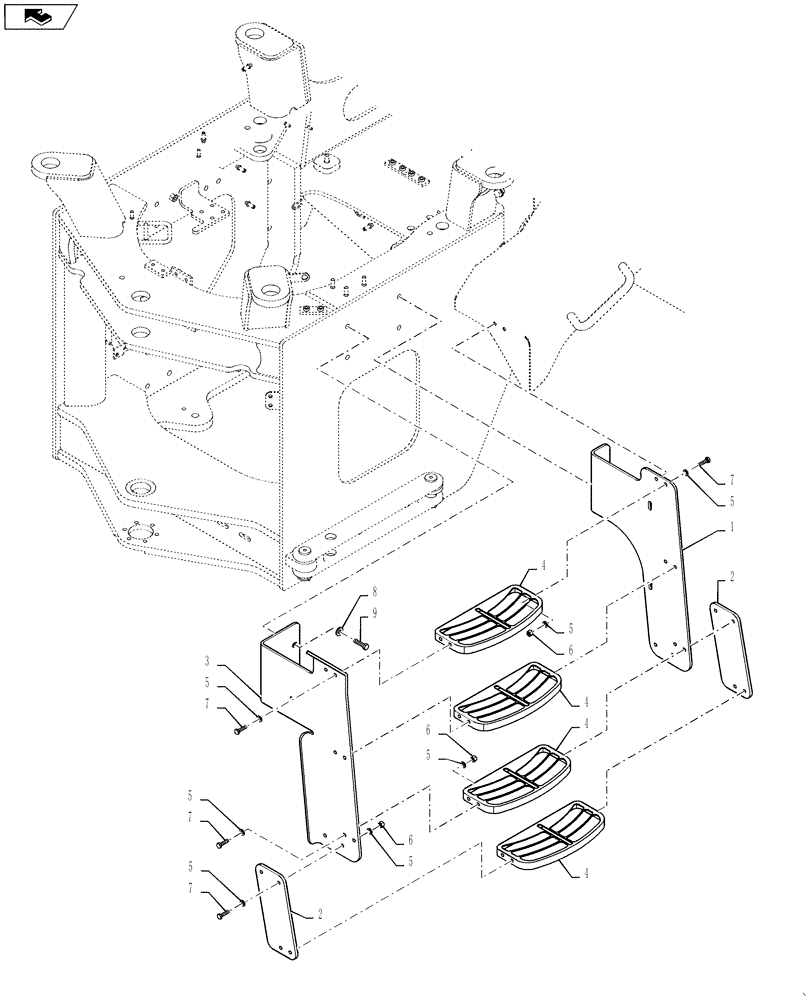

Запчасти Case 521F (90.116.02) - LEFT STEPS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84191111

BRACKET

Step Support Rear

1шт.

2

87749270

STRAP

STRAP

2шт.

3

87749266

BRACKET

LH Step Support

1шт.

3

87484111

BRACKET

Lh Step Support, For EU models only

1шт.

4

87434472

STEP

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

40шт.

6

832-10410

NUT,M10 x 1.5, Cl 8

20шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

20шт.

8

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

9

627-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

4шт.
