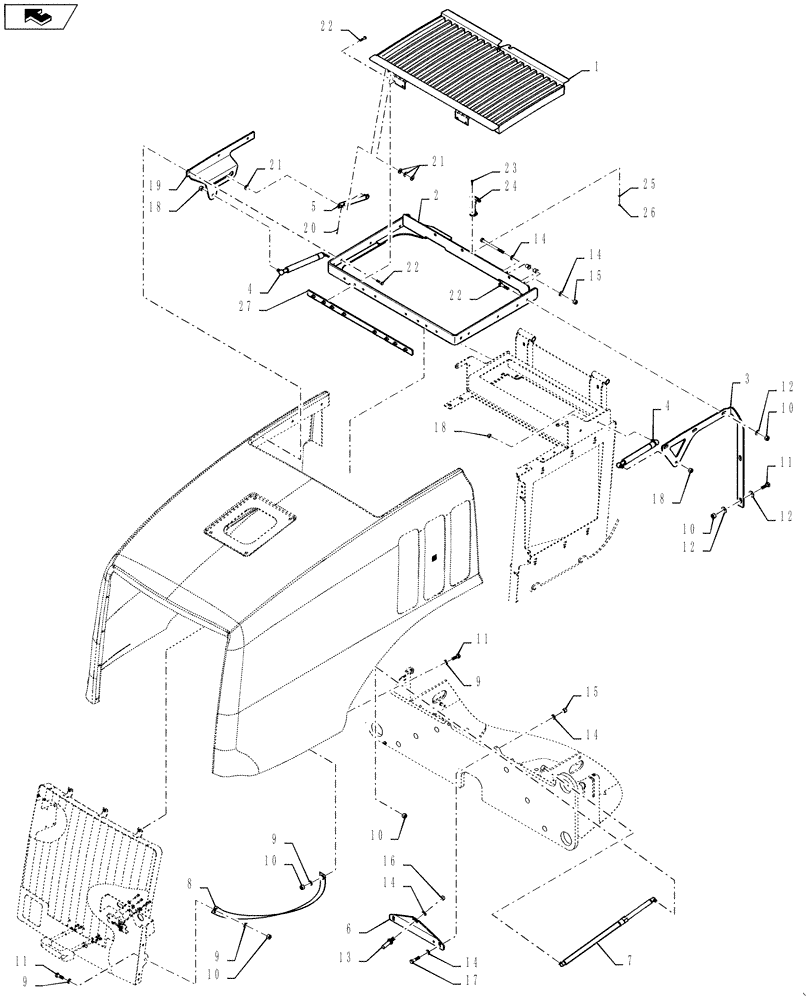

Запчасти Case 521F (90.100.03) - HOOD MOUNTING PARTS (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87451621

SCREEN

Top

1шт.

2

8603198

SUPPORT ASSY.

Hood and Top Screen

1шт.

3

390867A3

PLATE ASSY.

Hood Support

1шт.

4

361456A1

GAS STRUT

Gas

2шт.

5

390606A2

BAR

Prop

1шт.

6

87451013

PLATE

Striker Mount

1шт.

7

398767A1

GAS STRUT

Gas

3шт.

8

407198A1

STRAP

Hood Pull

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

8шт.

11

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.

13

87426927

BOLT,Hex Wshr, M12 x 1.75 x 85mm

1шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

9шт.

15

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

16

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

17

827-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

2шт.

18

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

19

390865A2

PLATE ASSY.

LH Backing

1шт.

20

733-3220

COTTER PIN,M3.2 x 20

2шт.

21

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

22

827-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 10.9

14шт.

23

864-5016

HEX SOC SCREW,M5 x 16mm, Cl 8.8

2шт.

24

384774A1

LATCH

Flexible Draw

1шт.

25

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

26

824-1405

NUT,M5, Cl 5

2шт.
