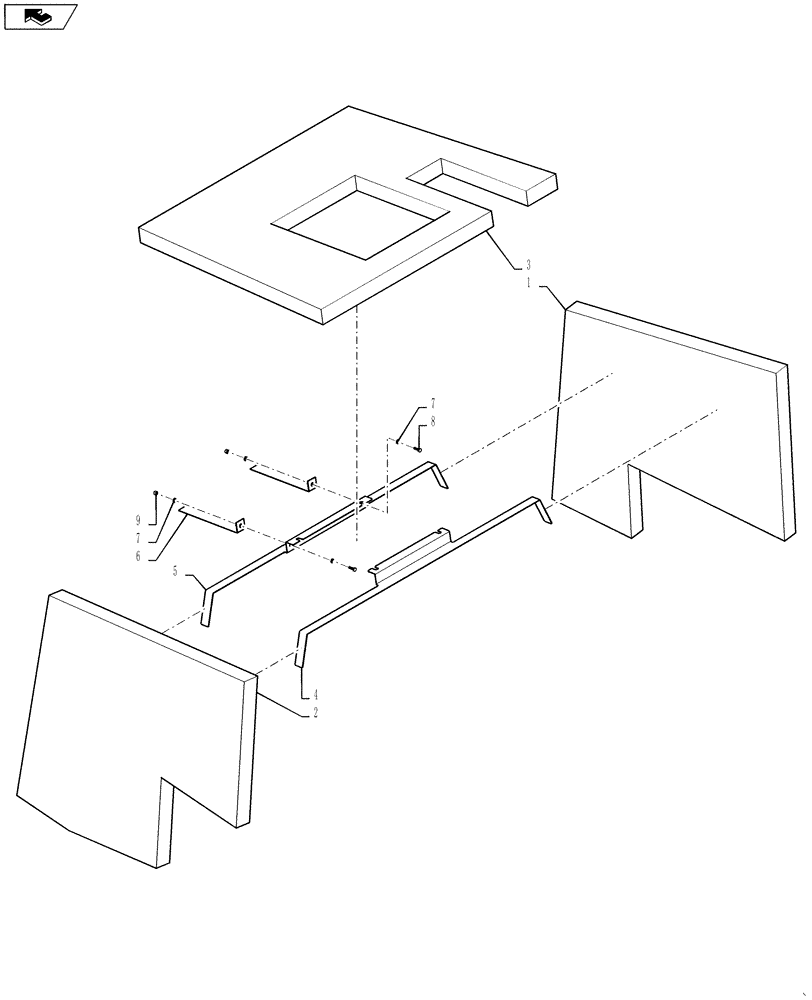

Запчасти Case 521F (90.100.01) - ENHANCED NOISE SUPRESSION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

8603071

INSULATING PANEL

Left Hand

1шт.

2

394257A1

FOAM

Right Hand

1шт.

3

8603072

INSULATING PANEL

Top

1шт.

4

408048A1

BRACKET

Front

1шт.

5

408049A1

BRACKET

Rear

1шт.

6

408050A1

BRACKET

Extension

2шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

627-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

9

832-10406

NUT,M6 x 1, Cl 8

2шт.
