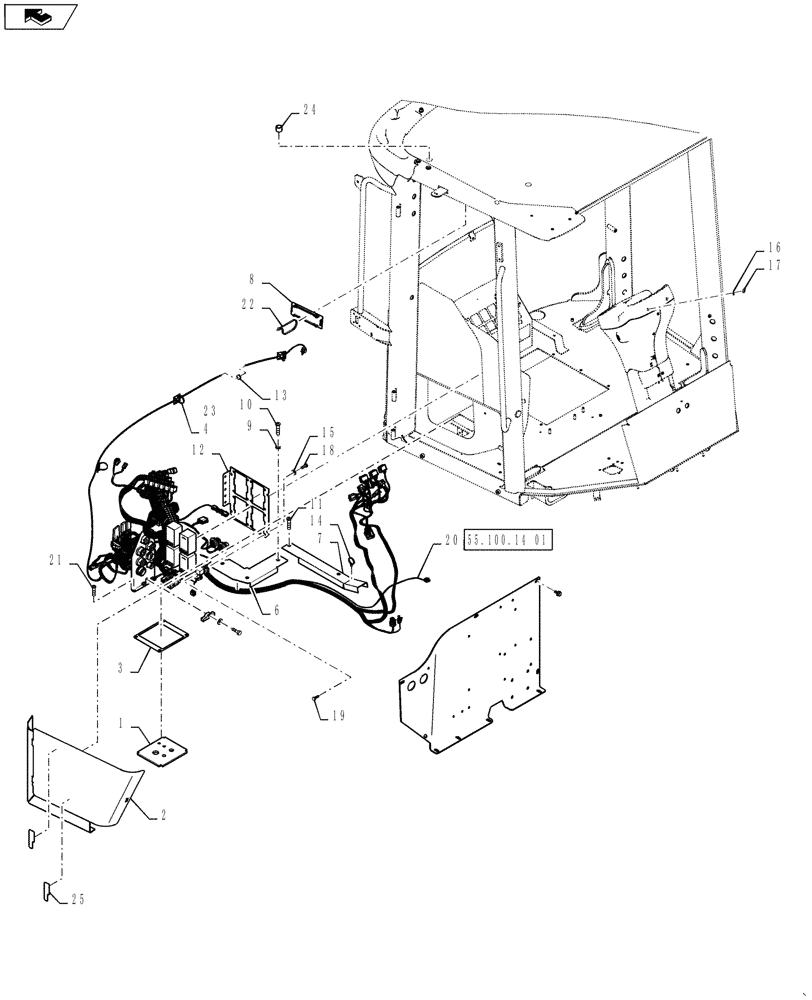

Запчасти Case 521F (55.100.14) - CAB MAIN WIRE HARNESS INSTALLATION (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84376391

GASKET

Harness

1шт.

2

87721000

DOOR

Electrical Access

1шт.

3

76303258

PLATE

Cab Harness Seal

1шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

3шт.

6

76303498

BRACKET

Connectors

1шт.

7

84308110

COVER

1шт.

8

76303606

COVER

Radio

1шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

11шт.

10

840-1625

SCREW,Pan, M6 x 25mm, Cl 4.8

4шт.

11

840-1616

SCREW,Pan, M6 x 16mm, Cl 4.8

7шт.

12

87341862

PLATE

1шт.

13

71485202

GROMMET,M5 x 21 x 16

1шт.

14

87668737

CABLE TIE,203.2mm L, Nylon, Black

Fir Tree Assembly

6шт.

15

297865A1

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

16

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

1шт.

17

253347A1

NUT,Hex, M10 x 1.5

1шт.

18

297850A1

SCREW,Cross Pan Hd, M6 x 16

6шт.

19

840-1512

SCREW,Pan, M5 x 12mm, Gr 4.8

16шт.

20

84494566

WIRE HARNESS

See Fig 55.100.14 (01) Tier 4, Serial Range: -NBF213602

1шт.

20

84494566

WIRE HARNESS

See Fig 55.100.14 (01) Tier 2, Serial Range: -NBF213588

1шт.

20

47429811

WIRE HARNESS

Tier 4, Start Serial: NBF213603

1шт.

20

47429811

WIRE HARNESS

Tier 2, Start Serial: NBF213588

1шт.

21

86509545

SELF-TAP SCREW,#10 - 24 x 3/4"

2шт.

22

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

23

NSS

NOT SOLD SEPARAT

3шт.

24

322197950

SPACER

Rubber

6шт.

25

84185846

DECAL

Access Door

2шт.
