(88.120.02) - REARVIEW MIRROR EXTERNAL, HEATED

Запчасти Case 521F (88.120.02) - REARVIEW MIRROR EXTERNAL, HEATED (88) - ACCESSORIES

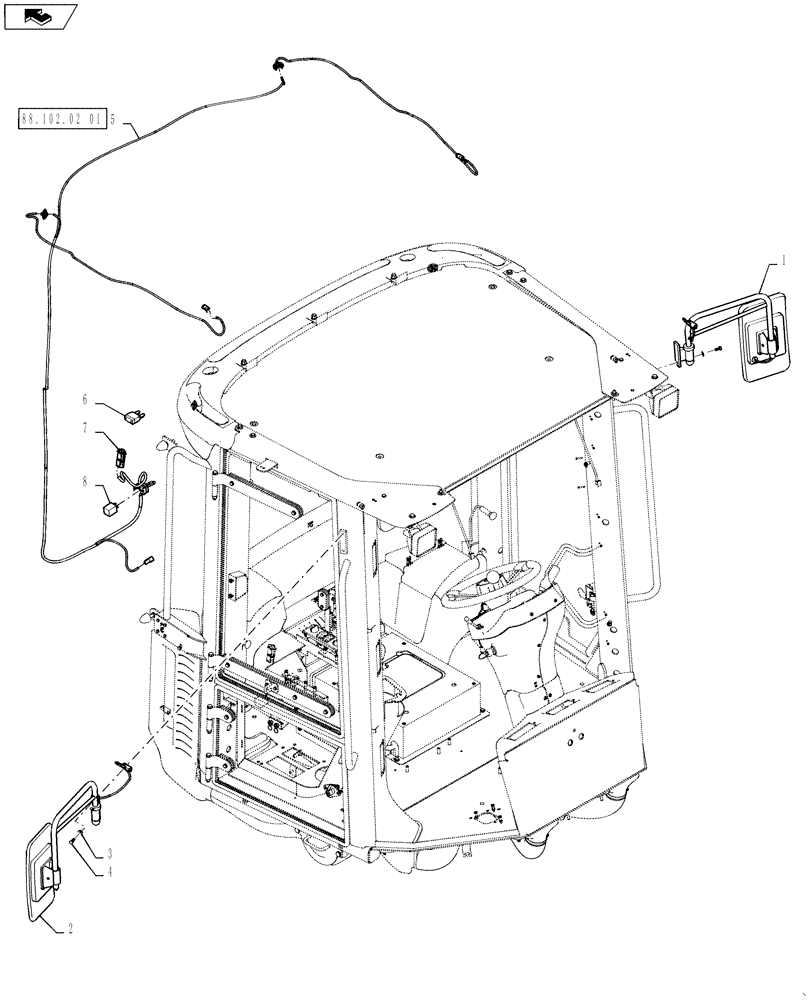

Схема запчастей Case 521F - (88.120.02) - REARVIEW MIRROR EXTERNAL, HEATED (88) - ACCESSORIES
7
3
home
8
88.102.02 01
4
5
1
88.102.02 04
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494319

LH MIRROR

Heated Mirror Assembly, Left

1шт.

2

84494318

RH MIRROR

Heated Mirror Assembly, Right

1шт.

3

87664049

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

16043424

SCREW,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

4шт.

5

84494902

WIRE HARNESS

Cab Mirror, See Fig 88.102.02 (01)

1шт.

6

121411A1

FUSE,7.5A, Mini, Brown

1шт.

7

84490718

MIRROR HEAT SWITCH

Heated Mirror

1шт.

8

84515582

RELAY

Time Delay 10 Min, 24V

1шт.
