(88.120.02[01]) - HEATED MIRROR WIRE HARNESS

Запчасти Case 521F (88.120.02[01]) - HEATED MIRROR WIRE HARNESS (88) - ACCESSORIES

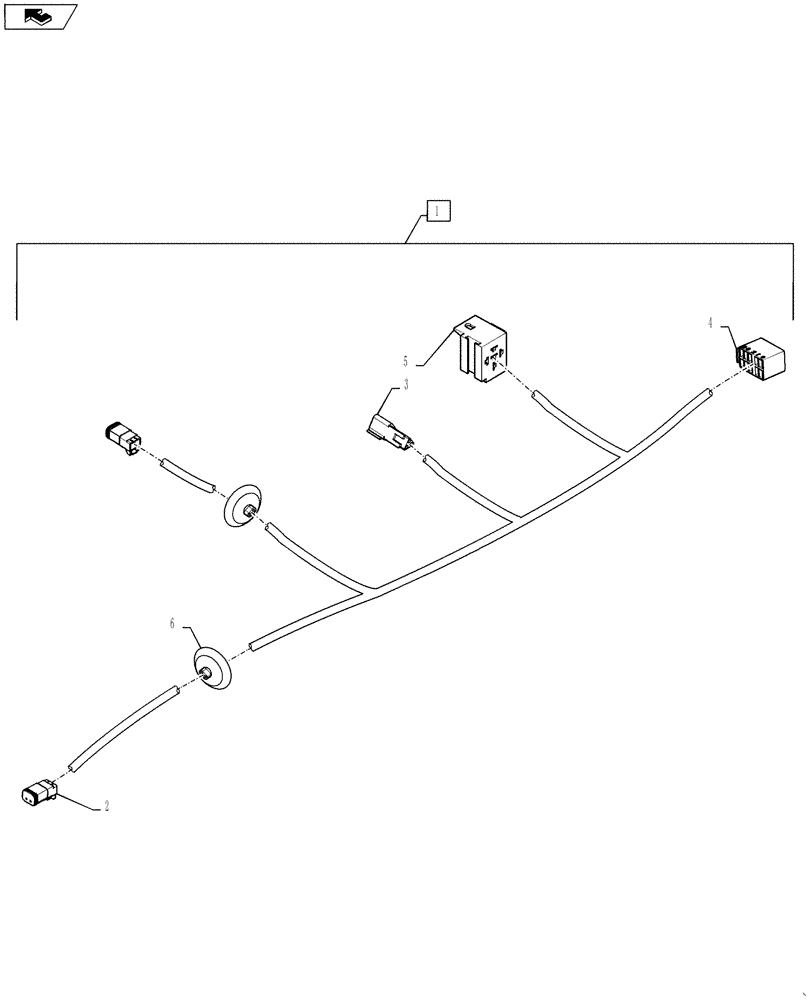

Схема запчастей Case 521F - (88.120.02[01]) - HEATED MIRROR WIRE HARNESS (88) - ACCESSORIES
4
2
3
home
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84494902

WIRE HARNESS

Includes 2-6

1шт.

2

225316C1

ELEC CONNECTOR,Female, 2 Pin

2шт.

3

225294C1

ELEC CONNECTOR,Male, 3 Pin

1шт.

4

382391A1

MULTIPOLE CONNECTOR,Female, 10 Pin

1шт.

5

245731C1

CONNECTOR, ELEC

CONNECTOR

1шт.

6

87613497

GUARD

Grommet

2шт.

Выбрано товаров: 6
