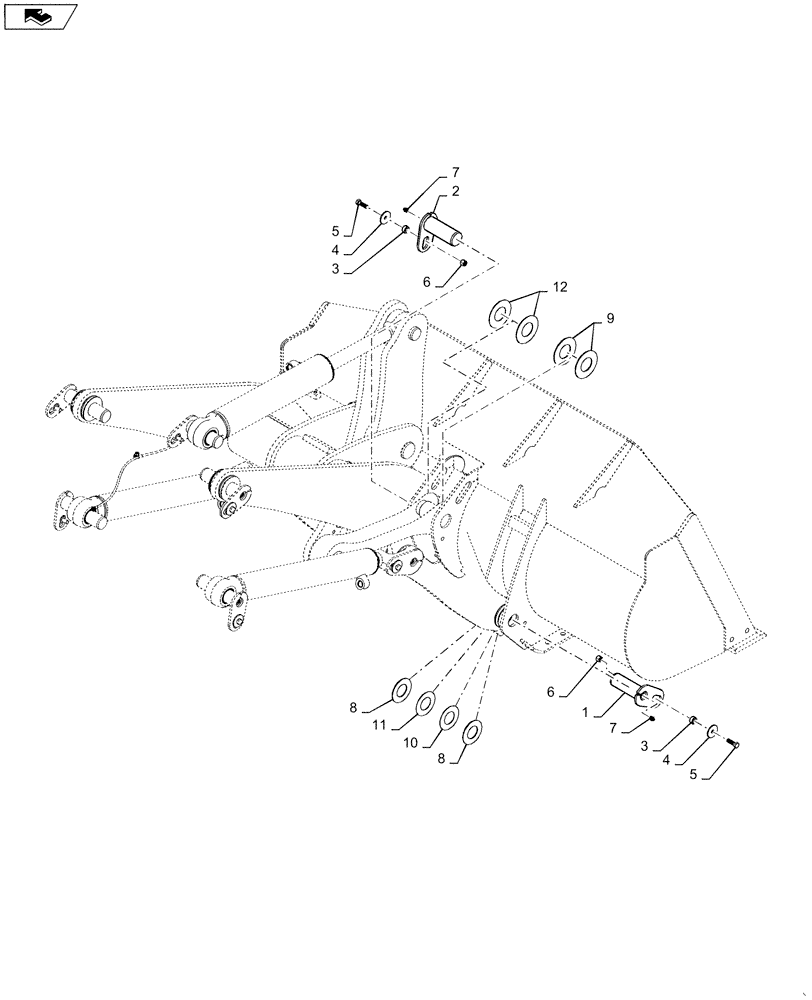

Запчасти Case 521F (82.100.02[01]) - Z-BAR LIFT ARM PIN INSTALATION (EU) ONLY (82) - FRONT LOADER & BUCKET

1

86993021

HEADED PIN

Lift Arm pivot CNH Black

2шт.

2

86993025

HEADED PIN

Dump Link Pivot CNH Black

1шт.

3

L125100

SPACER,17.48mm ID x 31.75mm OD x 14.3mm Thk

Plated

3шт.

4

496-81025

WASHER,21/32" x 2 1/2" x .188", HDN

3шт.

5

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

3шт.

6

832-10416

NUT,M16 x 2, Cl 8

3шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

3шт.

8

365355A1

WASHER,64.9mm ID x 123mm OD x 3.5mm Thk

64.9 I.D 3.5 THK

1шт.

9

365356A1

WASHER,71.3mm ID x 142mm OD x 3.5mm Thk

71.3 I.D 3.5 THK

1шт.

10

365353A1

WASHER,64.9mm ID x 123mm OD x 1.6mm Thk

64.9 I.D 1.6 THK

1шт.

11

365354A1

WASHER,64.9mm ID x 123mm OD x 2.5mm Thk

64.9 I.D 2.5 THK

1шт.

12

375517A1

WASHER,71.3mm ID x 142mm OD x 2.5mm Thk

71.3 I.D 2.5 THK

2шт.
