(82.100.01[03]) - 2.6 CU YARD BUCKET AND ATACHMENTS

Запчасти Case 521F (82.100.01[03]) - 2.6 CU YARD BUCKET AND ATACHMENTS (82) - FRONT LOADER & BUCKET

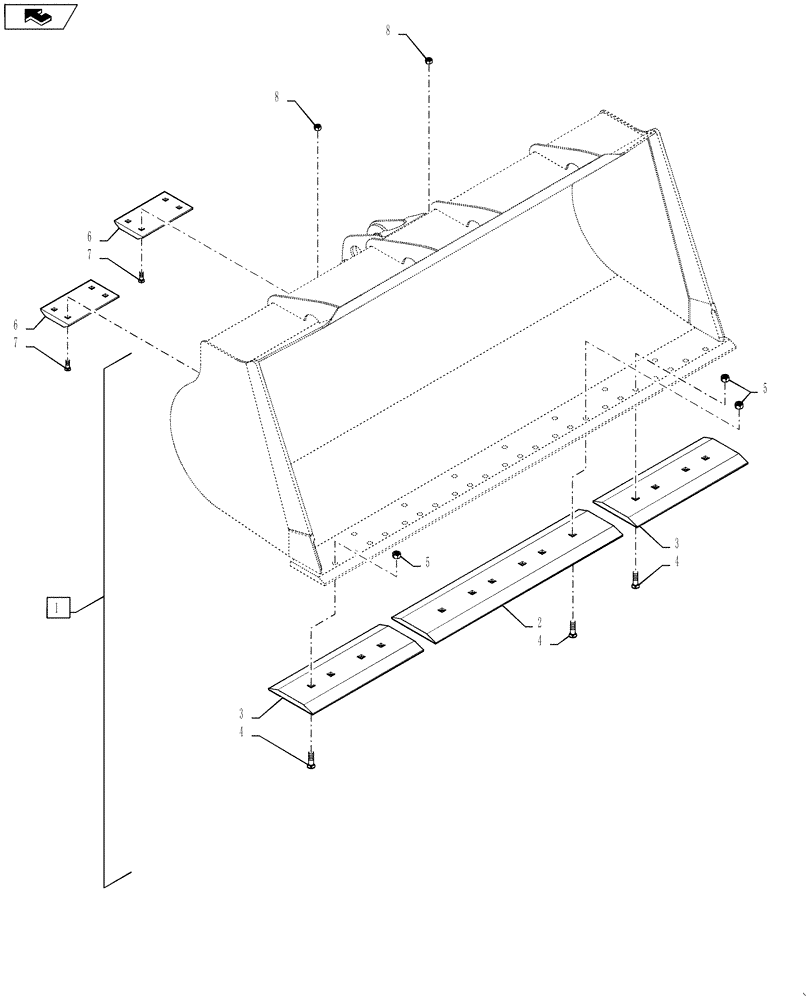

Схема запчастей Case 521F - (82.100.01[03]) - 2.6 CU YARD BUCKET AND ATACHMENTS (82) - FRONT LOADER & BUCKET
4
6
5
8
2
3
1
4
8
7
6
7
3
home
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87651177

2.6 CU Yard Bucket With Bolt On Cutting Edge Includes 2-8

1шт.

2

87651175

CUTTING EDGE

Blade Bolt On Center

1шт.

3

87651209

CUTTING EDGE,593mm L x 254mm W x 25mm Thk

Blade Bolt On Outer

2шт.

4

420-21244

PLOW BOLT,#3, 3/4" - 10 x 2 3/4", Gr 8

18шт.

5

425-1612

NUT,3/4"-10, G5, Hvy

18шт.

6

360939A1

PLATE

Bolt On Skid Plate

2шт.

7

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

8шт.

8

425-1612

NUT,3/4"-10, G5, Hvy

8шт.
