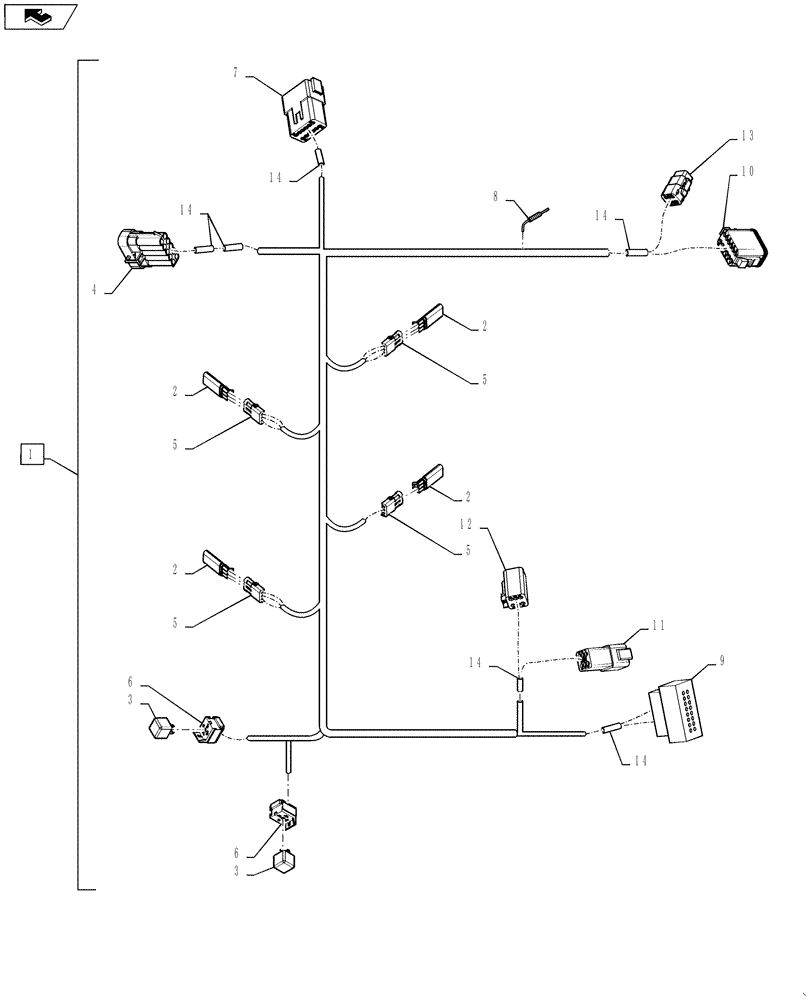

Запчасти Case 521F (55.512.05) - JOYSTICK WIRE HARNESS ASSEMBLY, CAB (55) - ELECTRICAL SYSTEMS

1

84152428

WIRE HARNESS

Joystick Harness Incl 2 - 13

1шт.

2

A187874

MODULE

4шт.

3

326845A1

RELAY,24V

2шт.

4

256354A1

CONNECTOR, ELEC

CONNECTOR F N R Console

1шт.

5

245485C1

ELEC CONNECTOR,Male, 3 Pin

3 Cavity Receptacle

4шт.

6

245731C1

CONNECTOR, ELEC

CONNECTOR 5 Cavity Minirelay Plug

2шт.

7

225388C1

ELEC CONNECTOR,Male, 12 Pin

12 Cavity Receptacle

1шт.

8

Resistor Included In Harness Item # 1

1шт.

9

16 Pin Included In Harness Item # 1

1шт.

10

225402C1

CONNECTOR, ELEC

CONNECTOR 12 Cavity Plug

1шт.

11

225350C1

ELEC CONNECTOR,Male, 6 Pin

6-Cavity Receptacle

1шт.

12

225351C1

ELEC CONNECTOR,Female, 6 Pin

6-Cavity Plug

1шт.

13

280451A1

CONNECTOR,ELECTRIC

6-Cavity Plug

1шт.
