(55.420.06) - CONTROL - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (XR LOADER)

Запчасти Case 521F (55.420.06) - CONTROL - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (XR LOADER) (55) - ELECTRICAL SYSTEMS

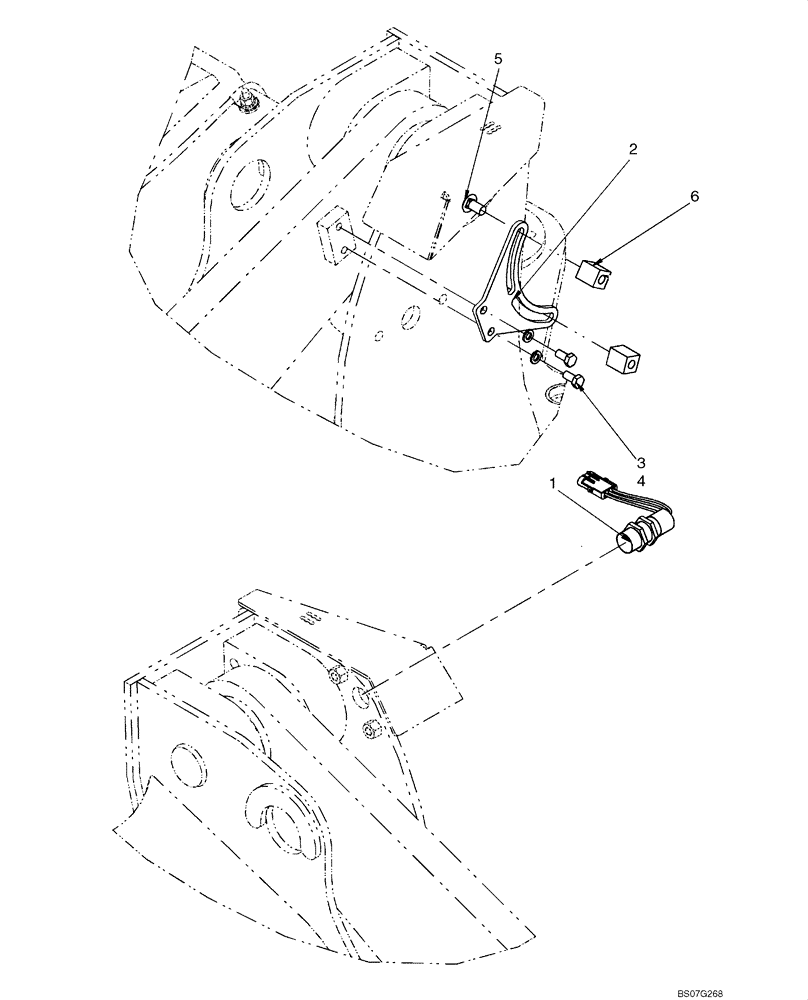

Схема запчастей Case 521F - (55.420.06) - CONTROL - BUCKET HEIGHT AND RETURN-TO-TRANSPORT (XR LOADER) (55) - ELECTRICAL SYSTEMS
2
6
4
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1546498C1

SWITCH

Proximity

1шт.

2

379149A2

MOUNTING PLATE

Bucket Height Target

1шт.

3

892-11010

LOCK WASHER,M10

2шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

811-12025

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 25mm, Cl 8.8

2шт.

6

87437102

BLOCK

2шт.
