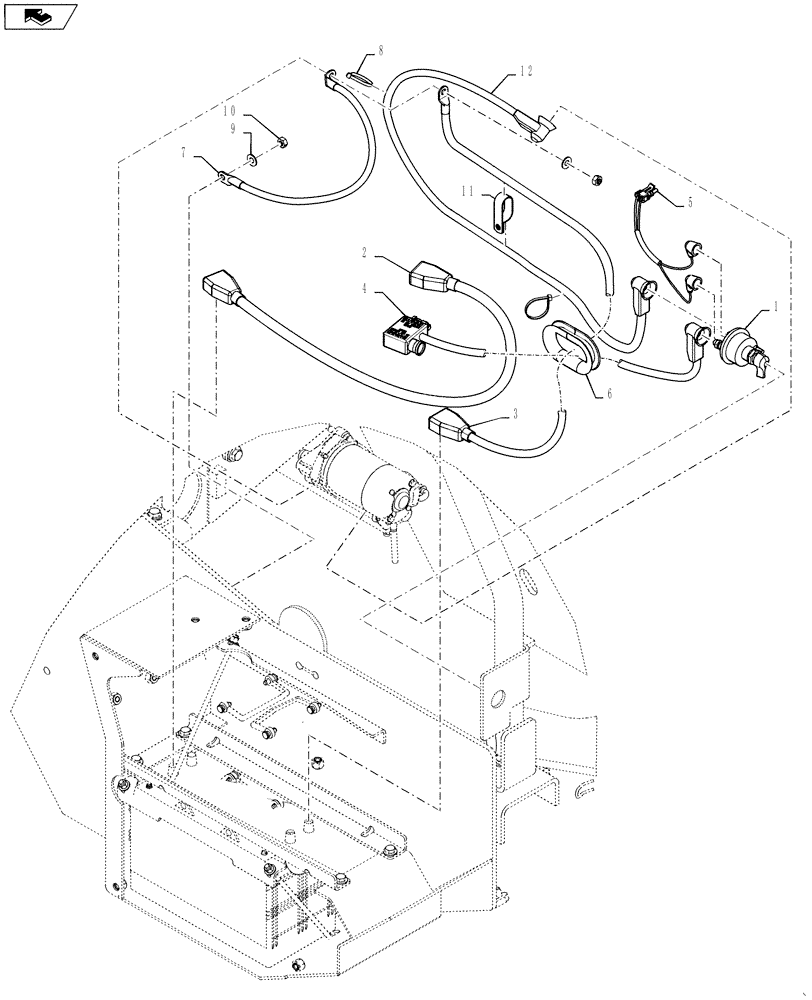

Запчасти Case 521F (55.302.01) - BATTERY CABLE INSTALLATION (55) - ELECTRICAL SYSTEMS

1

L126256

SWITCH

Master Disconnect

1шт.

2

84515861

CABLE

Battery Crossover

1шт.

3

84515863

NEG BATTERY CABLE

Negative to Ground

1шт.

4

84515862

POS BATTERY CABLE

Positive to Disconnect

1шт.

5

L127676

WIRE HARNESS

Disconnect

1шт.

6

398771A1

CONDUIT

1шт.

7

84515864

GROUND CABLE,567mm L

Engine Block Ground

1шт.

8

L11541

CABLE TIE,203.2mm L, Nylon

2шт.

9

L127554

WASHER,0.395" ID x 0.875" OD x 0.064" Thk

2шт.

10

253347A1

NUT,Hex, M10 x 1.5

2шт.

11

R54363

CLAMP

Double

1шт.

12

84515866

POS BATTERY CABLE

Battery Starter to Disconnect

1шт.
